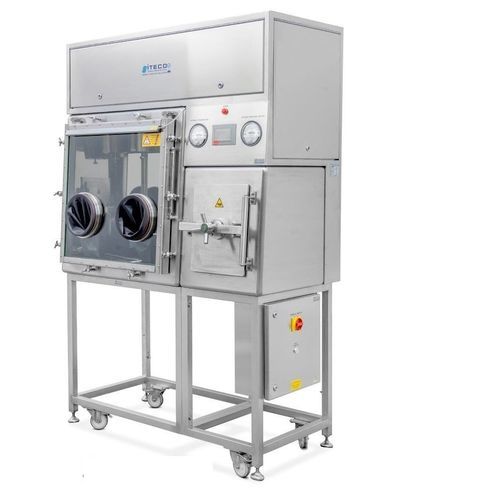

Pharmaceutical isolator RD Line

containmenttransferfor quality control

Isolator from the RD Line designed for pharmaceutical and chemical R&D and QC laboratories, intended for handling substances requiring a high degree of containment to protect operator and environment.

Key features

• Spacious work chamber with inclined front wall and fully openable front panel
• Prismatic pass-through/pre-chamber for controlled material transfers
• Integrated fluid and cable pass-throughs; provision for liners
• HMI touchscreen operator interface for process control and status display
• Acoustic and visual alarms for event signaling
• Inertization system available as an option
• Available with 2, 3 or 4 glove ports; suitable for small-scale production

Technical specifications

• Application: R&D and QC laboratories in pharmaceutical and chemical industries
• Structure: monolithic AISI 316L stainless steel construction
• Filtration system: dual HEPA 14 filters
• Filter efficiency monitoring: included (filter performance monitoring)
• User interface: HMI touchscreen
• Safety: enhanced containment level for operator and environmental protection
• Options: inertization system
• Glove configurations: 2 / 3 / 4
