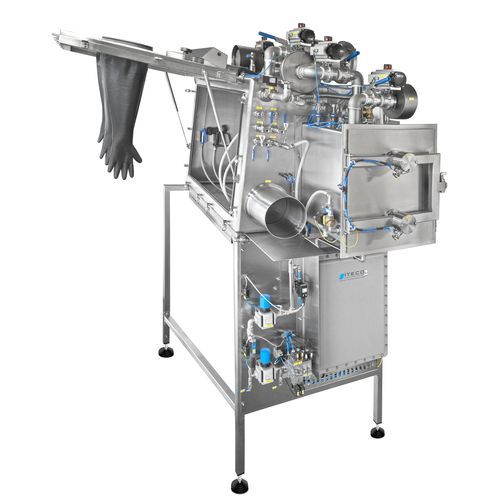

Containment glove box

for cytostaticsfor powder handlingfor production

Custom glove box designed for the loading and weighing of cytotoxic powders, engineered to interface with a production reactor. Specific versions available for loading mercury oxide; certified containment level OEB4 (<5 mg/m3).

Main features

• Intended use: loading and weighing cytotoxic powders, interfacing to a reactor via a worktop with flanged passthrough.
• Custom versions available (e.g. for loading mercury oxide).
• Sealed hatch with manual opening for material ingress/egress on the right wall (as per described version).
• Designed for integration with process equipment and production reactors.

Technical specifications

• Containment level: <5 mg/m3 — OEB4.
• Main version (work area): Work area mm 1200 x 1000 x 900; antechamber mm 700 x 500 x 900; support mm 1950 x 1350 x 2770; weight approx. 400 kg.
• Version for mercury oxide loading (alternative dimensions): front wall (L) mm 850; rear wall mm 450 (trapezoidal); side walls (P) mm 660; height (H) mm 900; support mm 750 L x 1030 H; overall footprint mm 1330 L x 880 P x 2260 H; weight approx. 200 kg.
• Worktop with flanged passthrough for reactor connection.
