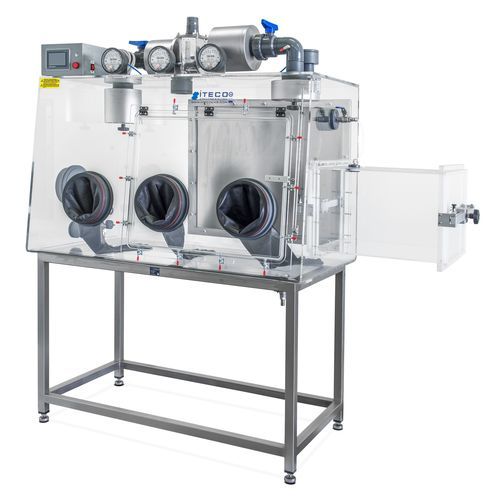

Transfer glove box SGS20 3PA

for pharmaceutical packagingfloor-standinginterface

Overview:
Glove box designed for interface and loading/unloading operations on lyophilizers, with a rear wall equipped with a stainless steel flange for direct connection to the lyophilizer. Available in standard SGS models (e.g. SGS20 3PA) and in custom versions configured for specific packaging and process requirements.

The system is composed of:

• Pass-through chamber in AISI 316 stainless steel for loading/unloading to the lyophilizer (with interface flange)
• Work chamber in PMMA for packaging operations (plates, microstrips, etc.)
• Mini chamber for material exit
• Dedicated supporting structure
• Oxygen analyzer (in applicable versions)

Images and variants:
Shown are both the version with the integrated pass-through chamber on the left and custom variants under construction in the workshop; dimensions and weights vary according to configuration.

Features / technical specifications:

• Model indicated on the page: SGS20 3PA (custom configuration for lyophilizer load/unload)
• Rear interface: stainless steel flange for connection to the lyophilizer
• Materials: pass-through chamber in AISI 316 stainless steel; work chamber in PMMA
• Dimensions (example model with small pass-through chamber): pass-through chamber 500 x 400 x 350 mm (LxDxH); work chamber 1400 x 750 x 850 mm (LxDxH); support 840 x 580 x 870 mm (LxDxH)
• Total weight (example model with small pass-through chamber): approximately 150 kg
• Dimensions (example custom system for microstrips packaging): pass-through chamber 1050 x 680 x 1600 mm (LxDxH); work chamber 2500 x 680 x 750 mm (LxDxH); internal mini chamber 350 x 300 x 300 mm (LxDxH); support 3550 x 650 x 450/900 mm (LxDxH)
• Total weight (example custom system): approximately 250 kg
• Optional/instrumentation: oxygen analyzer (specified in custom versions)
