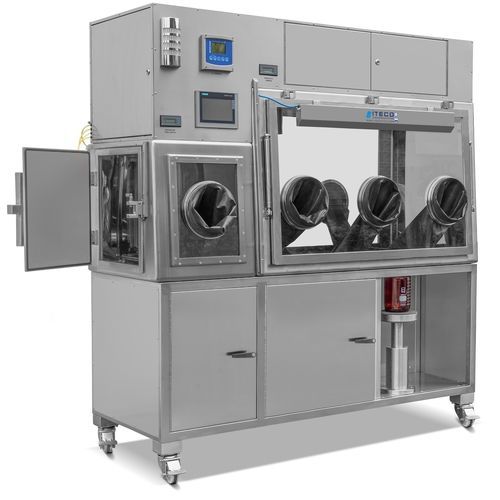

Containment isolator

dispensingfor powder handlingfor highly potent active pharmaceutical ingredients

Ex-certified dispensing isolator designed for the safe handling of high-risk powders (OEB4). Provides functions for material introduction, containment during operations and management of inertisation flows.

Main features

• Containment level suitable for handling OEB4 powders (OEL 1–10 µg/m3)
• Pass-through chamber for material introduction with useful opening 300×400 mm (L×H)
• Work chamber equipped with 3 flange ports Ø220 mm and antistatic bromobutyl gloves
• Upper technical compartment with dual extraction system and absolute HEPA 14 filters (with leak test capability)
• Siemens touch HMI panel for management of functional parameters
• Ex digital pressure gauges for control of chamber and pass-through pressure with pneumatic interlocks
• Oxygen (O2) analyzer and detector for monitoring and control of nitrogen flows, with audible and visual alarms for inertisation cycles

Characteristics / Technical specifications

• Work chamber dimensions (L×D×H): 1400×700×850 mm
• Pass-through chamber dimensions: 500×700×600 mm
• Stand dimensions: 850×650×860 mm
• Total footprint: 2050×820×2050 mm
• Weight: approximately 600 kg
• Gloves: antistatic bromobutyl
• Flanges: 3 × Ø220 mm
• Filtration: absolute HEPA 14 systems with leak test option
• Controls: Siemens touch HMI; Ex digital pressure gauges; pneumatic interlocks
• Inertisation systems: O2 analyzer, nitrogen flow management, audible and visual alarms
