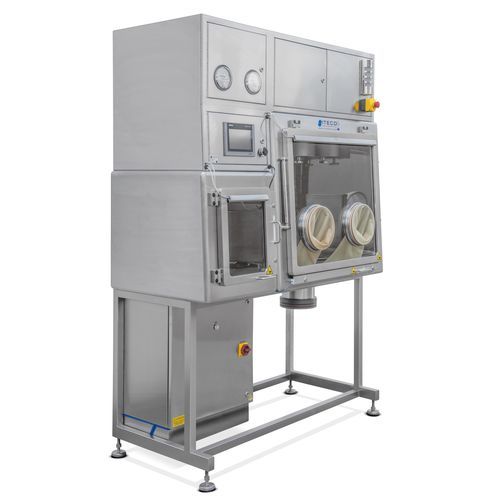

Containment isolator AMI 502

weighfloor-standingwith HEPA filter

Overview
Weighing isolator AMI 502 designed to operate in air or inert gas with a negative pressure gradient decreasing from outside to inside to ensure protection of the operator and the environment.

System composition

• Airlock for material introduction
• Work chamber
• Support frame
• Upper technical compartment

Main features

• Monolithic AISI 316L construction with mirror-polished internal surfaces
• Continuous liner for waste discharge
• Dual HEPA 14 filter assemblies on both extraction and supply (in and out)
• Pressure transmitters for operational control
• Pressure transmitters for filter efficiency monitoring
• Safety relief valves
• Provision for leak test (DOP test)
• Humidity and temperature probe
• Integrated power outlets
• Pressure reduction unit for gas inlet
• Pneumatic interlock during processing cycle
• Safety mode
• LED signal tower with audible and visual alarm
• Siemens touch HMI panel

Technical specifications

• Dimensions (L x D x H) mm: work chamber 1000 x 700 x 900
• Dimensions (L x D x H) mm: airlock 550 x 700 x 600
• Dimensions (L x D x H) mm: support 1460 x 570 x 760
• Weight: approx. 470 kg
• Power supply: 230 V - 50 Hz
