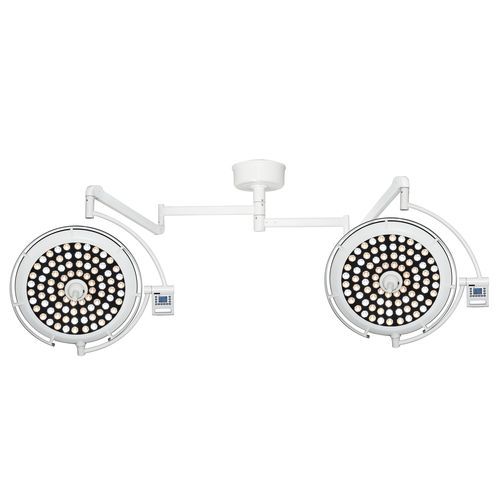

Ceiling-mounted surgical light FY-700700A

LEDfor operating rooms2-arm

Product Overview
The FY-700700A ceiling-mounted dual-head LED surgical light features an aluminum-alloy housing and imported German Osram LEDs. Each LED is paired with a dia-cut optical lens to deliver uniform, shadow-reduced illumination with low thermal emission. Ergonomic grip-rings and an upgraded control system enable precise positioning and intuitive operation for a wide range of operating theatre procedures.

Key Points

• Ultra-thin lamp heads
• Dia-cut optical lens per LED
• Grip-ring on lamp heads for effortless positioning
• Improved lamp control with upgraded electronics

Highlights / Features

• Dual ultra-thin lamp heads with aluminum alloy housing for corrosion resistance and easy cleaning
• Dia-cut optical lens on each LED for uniform light distribution and reduced glare
• Integrated grip-ring on each head for fast, sterile positioning
• Upgraded control system with user-friendly interface
• Manual focus adjustment via central rotating handle
• Stepless adjustable brightness and color temperature (3700K–5000K)
• Low temperature rise at the wound site to protect tissues and improve clinician comfort
• Long service life and energy-efficient LED array (≈90,000 h)

Technical Specifications
Lamp Head Design: Dual ultra-thin lamp heads
Housing Material: Aluminum alloy
Single Lamp Head Thickness: 5 cm
Single Lamp Head Diameter: 700 mm
Horizontal Arm Reach: 800 + 900 + 700 mm (three-segment arm)
Light Source: LED, Lifespan ≥90,000 h
LED Count: 84 LEDs per head, total 168 LEDs (Imported German Osram)
Optical Lens: Dia-cut lens per LED
Brightness: 40,000–160,000 Lux (adjustable)
Lighting Focus Range: 120–300 mm (manual)
Color Temperature: 3700K–5000K (adjustable)
Ra Index: 85–97
Lighting Depth: 500–1800 mm
Area Temperature Rise: <10°C
Single Head Power Consumption: 84 W
Power Input: AC 100–240 V, 50/60 Hz (switching power supply)
Warranty: 2 years
