Ceiling-mounted surgical light FY-700500B

LEDfor operating rooms2-arm

Product overview

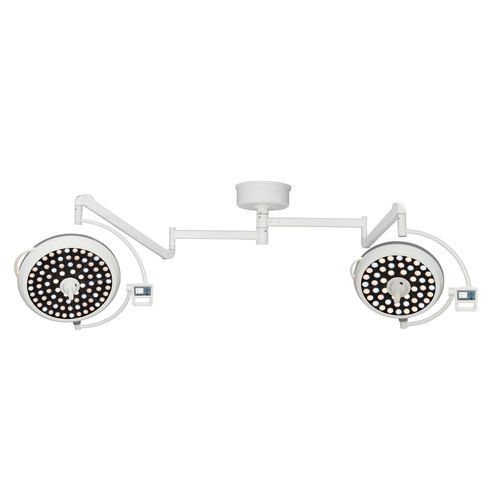

The FY-700500B is a ceiling-mounted dual-dome surgical light with standard 700 mm and 500 mm lamp heads. Designed for general operating rooms, it combines an aluminum alloy housing, long-life LED modules and manual focus control to deliver consistent shadow-minimized illumination for routine surgeries.

Key features

• Dual standard lamp heads: 700 mm + 500 mm (thickness ≤ 15 cm)
• Aluminum alloy housing for durability and effective heat dissipation
• Long-life LED source: ≥80,000 hours, no UV/IR emission
• Adjustable illuminance: 40,000–160,000 Lux; adjustable color temperature 3700K–5000K
• Manual focus via central rotating handle; focus range 120–300 mm
• Low thermal impact: area temperature rise <1℃ to protect tissues
• Horizontal arm reach: 800 + 900 + 700 mm for flexible positioning
• Easy maintenance and reliable performance for standard OR installations

Technical specifications

• Model: FY-700500B
• Lamp head diameters: 700 mm (80 LEDs) and 500 mm (40 LEDs)
• Housing material: Aluminum alloy
• Lamp head thickness: ≤15 cm
• Light source: LED, lifespan ≥80,000 hrs
• Illuminance: 40,000–160,000 Lux (adjustable)
• Focus: Manual, 120–300 mm
• Color temperature: 3700K–5000K (adjustable)
• Color rendering index (Ra): 85–95
• Lighting depth: 500–1800 mm
• Area temperature rise: <1℃
• Power consumption: 80 W (700 mm); 40 W (500 mm)
• Power input: AC 100–240 V, 50/60 Hz (switching power supply)
• Horizontal arm reach: 800 + 900 + 700 mm
• Warranty: 2 years

Clinical applications and maintenance

• Intended for general surgical procedures in standard operating rooms and procedure suites
• Manual controls suitable for settings where simple, reliable adjustment is required
• Regular maintenance: check LED modules and arm joints; designed for straightforward on-site servicing
• Complies with clinical requirements for low thermal load and adjustable lighting parameters
