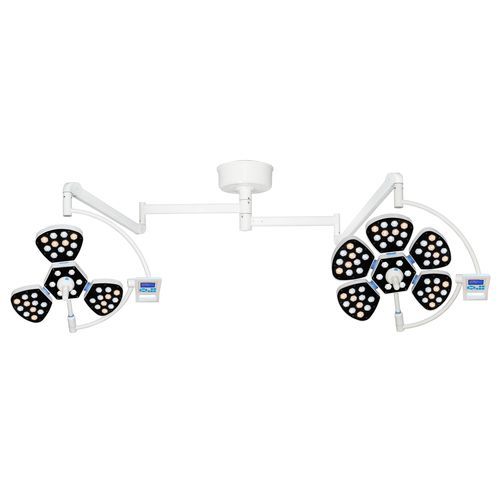

Ceiling-mounted surgical light FY-5+3B

LEDminor surgeryfor operating rooms

Product Overview
The FY-5+3B ceiling-mounted dual-head petal surgical LED light uses imported OSRAM LED chips to deliver cold, uniform illumination with strong shadow elimination and deep cavity lighting. It features an LCD control panel, adjustable color temperature and brightness, and a flexible balanced suspension arm system suitable for general surgery, plastic surgery and outpatient procedures.

Key Features

• True cold light source: Imported OSRAM LEDs with energy-saving performance and lifespan ≥80,000 hours; operator handle temperature rise <1℃; no infrared or ultraviolet emission to prevent wound overheating and tissue damage; stable color temperature without significant decay.
• Excellent shadowless performance: Petal multi-point lamp head design provides uniform spot illuminance and strong anti-shadow effect even when partially blocked; lamp arm rotation radius ≥182 cm; lamp head adjustable for multi-angle illumination.
• Deep illumination: Optical modular design concentrates multiple LED beams to provide effective lighting depth >1200 mm; maximum central illuminance up to 160,000 Lux; tunable color temperature 3700K–5000K to restore true tissue color.
• Intelligent LCD control: Button-type LCD panel to switch power, adjust brightness and color temperature; built-in memory stores preferred settings; independent circuit design prevents single LED failure from affecting overall lighting.
• Flexible balanced suspension: Alloy rotating arm with imported balance springs for smooth, lightweight movement and precise positioning; fatigue correction and fine positioning devices ensure long-term stability.
• Laminar-flow optimized ultra-thin head: German-designed petal ultra-slim lamp head thickness ≤10 cm to preserve laminar airflow; central detachable sterilizable handle withstands 134℃ autoclave sterilization for safe intraoperative handling.

Technical Specifications
Parameter — Specification
Model — FY-5+3B, Ceiling-mounted
Lamp Head Diameter — D3
Illuminance — 30,000–160,000 Lux (adjustable)
LED Quantity — 39 pcs
Light Source — Imported OSRAM LED
LED Lifespan — ≥80,000 Hours
Color Temperature — 3700K–5000K (adjustable)
Color Rendering Ra — 85–98 (adjustable)
Focus Depth — 50–180 cm
Spot Diameter — 120–300 mm
Brightness Regulation — 1%–100% stepless adjustable
Total Power — 39W
Operator Head Temp Rise — <1℃
Input Voltage — AC100–240V 50/60Hz

Specifications

• Model: FY-5+3B, Ceiling-mounted
• Lamp Head Diameter: D3
• Illuminance: 30,000–160,000 Lux (adjustable)
• LED Quantity: 39 pcs
• Light Source: Imported OSRAM LED
• LED Lifespan: ≥80,000 Hours
• Color Temperature: 3700K–5000K (adjustable)
• Color Rendering (Ra): 85–98 (adjustable)
• Focus Depth: 50–180 cm
• Spot Diameter: 120–300 mm
• Brightness Regulation: 1%–100% stepless adjustable
• Total Power: 39W
• Operator Head Temperature Rise: <1℃
• Input Voltage: AC100–240V 50/60Hz
