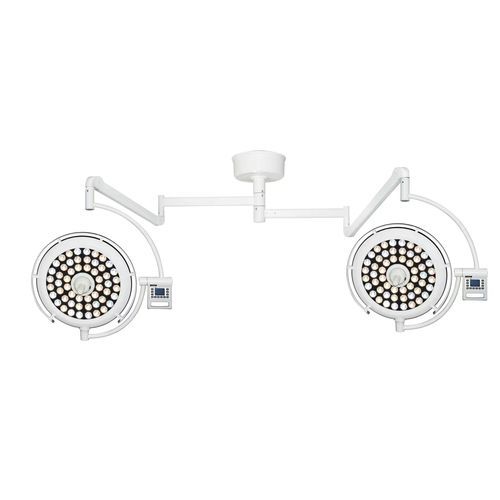

Ceiling-mounted surgical light FY-500500A

LEDfor operating rooms2-arm

Product Overview
The FY-500500A ceiling-mounted LED double-dome surgical light delivers uniform, adjustable illumination for operating rooms. It features dual ultra-thin 500 mm lamp heads with aluminum-alloy housings, imported German Osram LEDs and dia-cut optical lenses for each LED to ensure focused, even light. The ergonomic grip-ring and upgraded control system enable simple positioning and reliable operation. Manual focus is achieved via a central rotating handle. Brightness and color temperature are adjustable to suit clinical procedures. Ultra-low temperature rise protects patient and staff safety. LED lifespan >80,000 hours.

Additional Notes
Ultra-thin lamp heads
Dia-cut optical lenses per LED
Grip-ring on lamp heads for positioning
Upgraded lamp control system

Key Features

• Dual ultra-thin 500 mm lamp heads with aluminum-alloy housing: lightweight and rigid
• Dia-cut optical lens for each LED bulb to ensure uniform light distribution
• Practical grip-ring on each head for easy angle and position adjustment
• Upgraded control system for intuitive and reliable operation
• Manual focus adjustment via central rotating handle
• Adjustable brightness (40,000–160,000 Lux) and color temperature (3700–5000K)
• Ultra-low area temperature rise <1°C for patient and staff safety
• Long LED service life >80,000 hours, energy-efficient

Technical Specifications

• Lamp head design: Dual ultra-thin lamp heads
• Housing material: Aluminum alloy
• Single head thickness: ≤8 cm
• Single head diameter: 500 mm
• Horizontal reach: 800 + 900 + 500 mm
• Light source & lifespan: LED, ≥80,000 hrs
• LED count: 54 per head (Imported German Osram)
• Optical lens: Dia-cut per LED
• Brightness: 40,000–160,000 Lux (adjustable)
• Lighting focus range: 120–300 mm (manual)
• Color temperature: 3700–5000K (adjustable)
• CRI (Ra): 85–97
• Lighting depth: 500–1800 mm
• Area temperature rise: <1°C
• Single head power consumption: 54 W
• Power input: AC100–240V 50/60Hz (switching power supply)
• Warranty: 2 years
