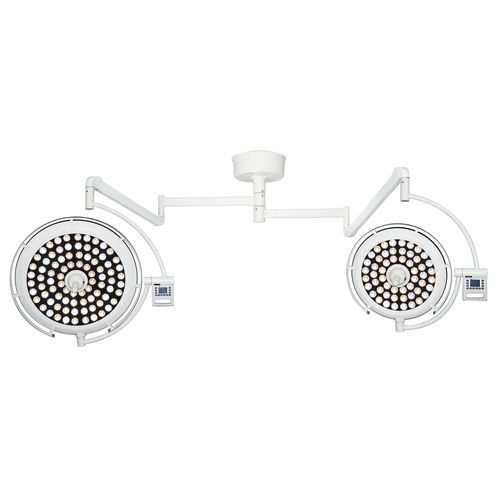

Ceiling-mounted surgical light FY-700500A

LEDfor operating rooms2-arm

Overview
The FY-700500A LED double-dome ceiling-mounted surgical light is designed for operating rooms and major procedures. It integrates one 700 mm and one 500 mm ultra-thin aluminum-alloy lamp head, high-performance imported Osram LEDs and independent dia-cut optical lenses to provide uniform, shadow-minimized illumination. Ergonomic integrated grip-rings and a central rotating handle allow precise positioning and manual focusing. Stepless brightness and color temperature adjustment accommodate diverse clinical requirements while maintaining an area temperature rise <1℃ to protect tissue.

Key Features

• Dual ultra-thin lamp heads (700 mm + 500 mm) with aluminum-alloy housing
• Independent dia-cut optical lens for each LED for uniform light distribution
• Integrated grip-ring on both heads for flexible angle adjustment and aseptic handling
• Upgraded control system for stable, intuitive operation
• Manual central rotating handle for precise focus adjustment
• Stepless adjustable brightness and color temperature (3700K–5000K)
• Ultra-low area temperature rise <1℃ to minimize tissue drying
• Long-life imported Osram LEDs (≥80,000 hrs), energy-efficient

Technical Specifications
Model: FY-700500A
Lamp head type: Dual ultra-thin heads (700 mm + 500 mm)
Housing material: Aluminum alloy
Lamp head thickness: ≤9 cm (700 mm head); ≤8 cm (500 mm head)
Lamp head diameter: 700 mm; 500 mm
Horizontal arm reach: 800 + 900 + 700 mm
Light source: LED, lifespan ≥80,000 hrs
LED quantity: 84 pcs (700 mm head); 54 pcs (500 mm head), imported Osram
Optical design: Independent dia-cut lenses per LED
Brightness: 40,000–160,000 Lux, stepless adjustable
Focus range: 120–300 mm, manual
Color temperature: 3700K–5000K, adjustable
Ra index: 85–97
Lighting depth: 500–1800 mm
Area temperature rise: <1℃
Power consumption: 84 W (700 mm head); 54 W (500 mm head)
Power input: AC100–240V 50/60Hz, switching power supply
Warranty: 2 years

caractéristiques / spécifications techniques

• Model: FY-700500A
• Lamp heads: Dual (700 mm and 500 mm) ultra-thin aluminum alloy
• LED source: Imported Osram LEDs, life ≥80,000 hrs
• LED count: 84 (700 mm) / 54 (500 mm)
• Brightness: 40,000–160,000 Lux (stepless)
• Color temperature: 3700K–5000K (adjustable)
• Focus range: 120–300 mm (manual)
• Lighting depth: 500–1800 mm
• Color rendering index (Ra): 85–97
• Area temperature rise: <1℃
• Power consumption: 84 W + 54 W
• Power input: AC100–240V 50/60Hz
• Horizontal arm reach: 800 + 900 + 700 mm
• Optical design: Independent dia-cut lenses per LED
• Controls: Upgraded control system; manual central rotating focus; integrated grip-ring for positioning
• Warranty: 2 years
