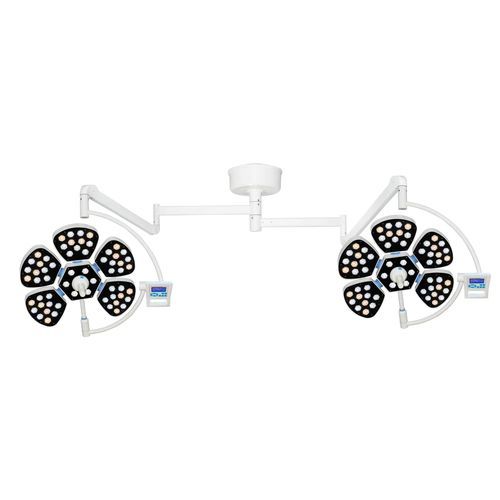

Ceiling-mounted surgical light FY-5+5B

LEDfor operating rooms2-arm

Product Overview
The FY-5+5B dual-head ceiling shadowless lamp features imported OSRAM LED cold light source and a petal-style lamp head. It provides consistent shadow reduction, deep cavity illumination and an intelligent LCD control interface, suitable for major surgeries, general surgery and plastic procedures.

Key Features
1. True Cold Light Source

• Imported OSRAM LED chips for energy-efficient operation and service life ≥80,000 hours; surgeon head temperature rise ＜1℃.
• No infrared or ultraviolet radiation, preventing wound overheating and tissue damage associated with halogen lamps.
• Stable color temperature with minimal luminous decay; soft, natural light to reduce glare during long procedures.

2. Excellent Shadowless Performance

• Petal multi-point lamp head delivers uniform spot illuminance, maintaining shadowless effect even when part of the head is occluded.
• Arm rotation radius ≥182 cm; lamp head can be positioned nearly vertical for multi-angle, flexible illumination.

3. Superior Deep Illumination

• Computer-aided modular optical design concentrates multiple LED beams to achieve deep illumination up to and beyond 1200 mm, with max central illuminance up to 180,000 Lux.
• Adjustable color temperature 3700K–5000K to restore true tissue color across surgical requirements.

4. Advanced Intelligent Control System

• LCD button control for power, brightness and color temperature adjustment to meet diverse clinical scenarios.
• Digital memory saves preferred lighting parameters for immediate reuse after restart.
• Independent multi-circuit design ensures single LED failure does not affect overall lamp operation.

5. Universal Alloy Suspension Arm System

• Main rotating arm constructed from high-performance alloy for durability and stability.
• Imported balance spring assembly enables lightweight, smooth movement and precise positioning with wide adjustment range.
• Integrated fatigue correction and fine positioning mechanism for easy calibration after long-term use.

6. Laminar Flow Optimized Ultra-thin Lamp Head

• German petal slim design with maximum thickness ≤10 cm to preserve laminar airflow in sterile operating rooms.
• Detachable central handle withstands 134℃ high-pressure autoclave sterilization for sterile adjustments.

Technical Specifications

• Model: FY-5+5B, Ceiling-mounted Dual Head
• Illuminance: 40,000–160,000 Lux adjustable per head
• LED Quantity: 61 pcs per lamp head
• Light Source: Imported OSRAM LED
• LED Lifespan: ≥80,000 Hours
• Color Temperature: 3700K–5000K adjustable
• Ra Index: 85–98 adjustable
• Focus Depth: 50–180 cm
• Spot Diameter: 120–300 mm adjustable
• Brightness Regulation: 1%–100% stepless
• Power Consumption: 61W per lamp head
• Operator Head Temperature Rise: ＜1℃
• Input Voltage: AC100–240V 50/60Hz
• Warranty: 2 Years
