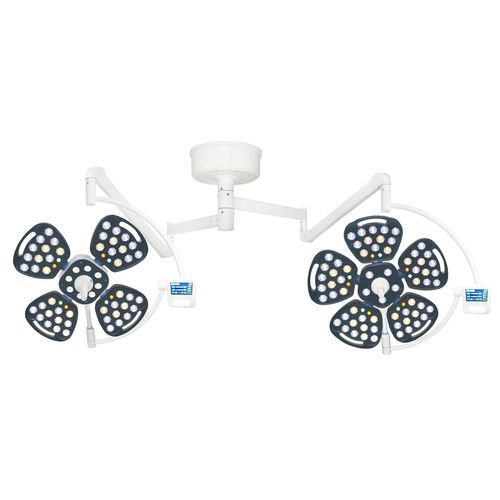

Ceiling-mounted surgical light FY-4+5A

LEDfor operating rooms2-arm

FY-4+5A Ceiling-mounted LED Surgical Light

Overview
Ceiling-mounted dual-head surgical light featuring ultra-thin five-petal lamp heads for main and auxiliary illumination. Adjustable color temperature 3700–5000K, central illuminance up to 160,000 Lux and effective working depth over 1200 mm. Designed for operating rooms requiring precise color rendering and stable shadow management.

Key Features

• Premium cold light source: Imported OSRAM LED chips with service life ≥80,000 hours. Operator head temperature rise <1℃. No infrared or ultraviolet emission; stable color temperature with low light decay. Built-in R9 red and R11 green spectrum for improved tissue color rendering and reduced visual fatigue.
• Excellent shadowless performance: Ultra-thin five-petal lamp head with modular multi-point light source provides uniform illuminance and flexible spot adjustment, maintaining shadowless effect under partial obstruction. Diamond-cut lens structure reduces light loss and disperses direct glare for comfortable illumination.
• Outstanding deep illumination: Modular optical design delivers lighting depth >1200 mm and maximum central illuminance up to 160,000 Lux. Adjustable spot diameter and color temperature for accurate tissue visualization.
• Intelligent digital control system: Microcomputer control with LCD touch screen for stepless brightness and color temperature adjustment. Multiple modes: general lighting, endoscopic mode and dim light mode. Built-in memory saves custom settings. Independent multi-circuit design prevents single LED failure from affecting full lamp operation.
• Flexible universal suspension system: Rotary arm in high-performance alloy with imported balance spring components. Lightweight, smooth operation and precise positioning with wide adjustment range. Fatigue correction and fine-tuning device for easy calibration.
• Laminar flow optimized lamp head: Ultra-thin five-petal head (maximum thickness ≤9 cm) to maintain laminar airflow. Each petal includes integrated handle; detachable central handle withstands 134℃ high-pressure autoclave sterilization. Housing made of ABS.
• Optional functions: Mutual control between lamp heads and automatic shadow compensation.

Technical Specifications (table)
Parameter | Main Lamp (Five-petal) | Auxiliary Lamp (Five-petal)
Lamp Head Type | Five-petal | Five-petal
Adjustable Illuminance | 20,000–160,000 Lux | 20,000–160,000 Lux
LED Quantity | 75 pcs | 64 pcs
Light Source | LED (Imported OSRAM) | LED (Imported OSRAM)
LED Lifespan | ≥80,000 hrs | ≥80,000 hrs
Adjustable Color Temperature | 3700K~5000K | 3700K~5000K
Color Rendering Index (Ra) | ≥96 | ≥96
Focus Depth | 50–180 cm | 50–180 cm
Adjustable Spot Diameter | 120–300 mm | 120–300 mm
Brightness Regulation | 1%~100% Stepless Adjustable | 1%~100% Stepless Adjustable
Power Consumption | 75W | 64W
Operator Head Temp Rise | <1℃ | <1℃
Input Voltage | AC100-240V 50/60Hz | AC100-240V 50/60Hz
Installation Type | Ceiling-mounted | Ceiling-mounted
Optional Functions | Lamp head mutual control, shadow compensation | Lamp head mutual control, shadow compensation

Specifications

• Lamp Head Type: Main - Five-petal; Auxiliary - Five-petal
• Adjustable Illuminance: Main - 20,000–160,000 Lux; Auxiliary - 20,000–160,000 Lux
• LED Quantity: Main - 75 pcs; Auxiliary - 64 pcs
• Light Source: LED (Imported OSRAM) for both lamps
• LED Lifespan: ≥80,000 hrs (both)
• Adjustable Color Temperature: 3700K–5000K (both)
• Color Rendering Index (Ra): ≥96 (both)
• Focus Depth: 50–180 cm (both)
• Adjustable Spot Diameter: 120–300 mm (both)
• Brightness Regulation: 1%–100% stepless adjustable (both)
• Power Consumption: Main - 75W; Auxiliary - 64W
• Operator Head Temperature Rise: <1℃ (both)
• Input Voltage: AC100–240V 50/60Hz (both)
• Installation Type: Ceiling-mounted (both)
• Optional Functions: Lamp head mutual control and shadow compensation
