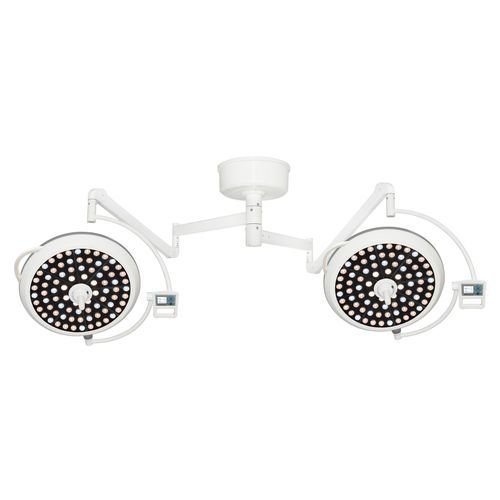

Ceiling-mounted surgical light FY-700700B

LEDfor operating rooms2-arm

Overview
The FY-700700B is a practical, cost-effective ceiling-mounted dual-head LED surgical light designed for standard operating rooms. It features two 700 mm lamp heads with aluminum alloy housing and high-efficiency LEDs to provide stable shadowless illumination for routine surgical procedures. The unit offers adjustable brightness and color temperature, manual focus control and low heat generation to protect exposed tissue.

Key Features

• Dual 700 mm standard lamp heads (thickness ≤15 cm)
• Aluminum alloy housing for durability and heat dissipation
• Long-life LED light source (≥80,000 hrs), no infrared/ultraviolet radiation
• Adjustable brightness and color temperature to suit general surgery
• Manual focus via central rotating handle
• Low area temperature rise (<1℃) to protect wound tissue
• Stable performance and easy maintenance for standard OR environments

Technical Specifications
Model: FY-700700B
Lamp Head Type: Dual Standard Lamp Heads (700 mm + 700 mm)
Housing Material: Aluminum Alloy
Lamp Head Thickness: ≤15 cm
Lamp Head Diameter: 700 mm; 700 mm
Horizontal Arm Reach: 800 + 900 + 700 mm
Light Source: LED, Lifespan ≥80,000 hrs
LED Quantity: 80 pcs; 80 pcs
Illuminance: 40,000 - 160,000 Lux, adjustable
Focus Range: 120 - 300 mm, manually adjustable
Color Temperature: 3700K - 5000K, adjustable
CRI (Ra): 85 - 95
Lighting Depth: 500 - 1800 mm
Area Temperature Rise: <1℃
Power Consumption: 80W; 80W
Power Input: AC100-240V 50/60Hz, switching power supply
Warranty: 2 Years
