Ceiling-mounted surgical light FY-5+5ALEDfor operating roomsgeneral medicine
Add to favorites
Compare this product
Characteristics
- Configuration
- ceiling-mounted
- Light source
- LED
- Applications
- for operating rooms, general medicine
- Number of arms
- 2-arm
- Color rendering index
- 97, 85
- Options
- with control panel
- Other characteristics
- homogeneous light, high intensity, shadowless
- Power
Min.: 65 W
Max.: 65 W
- Intensity at 1 m
Min.: 40,000 lx
Max.: 160,000 lx
- Color temperature
Min.: 3,700 K
Max.: 5,000 K
- Lifetime of bulbs
80,000 h, 100,000 h
Description
Product

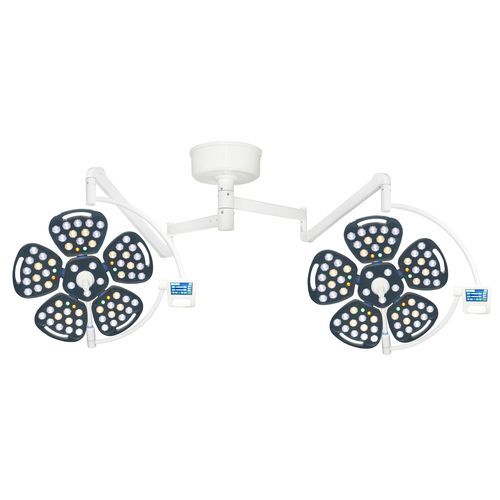

FY-5+5A LED surgical double-dome light engineered for operating rooms, offering stable, uniform illumination with a dual focus-adjustable petal head design and upgraded lamp control. Low-heat, low-power output ensures comfort for surgical teams and patients. Suitable for major, general and plastic surgeries.
Key Features
Technical Specifications
Lamp head design: Dual focus-adjustable petal lamp head with grip on each petal
Control system: Optimized upgraded lamp control
Focus adjustment: 120–300 mm, manual via central handle
Installation type: Ceiling-mounted
Housing material: ABS
Lamp head thickness: ≤10 cm
Lamp head diameter: 720 mm / 720 mm
Horizontal lamp head reach: 800+900+720 mm
Light source: LED (lifespan ≥80,000 hrs)
LED bulbs: 65 pcs per head
Brightness: 40,000–160,000 Lux, adjustable
Color temperature: 3700K–5000K, adjustable
Ra index: 85–97
Lighting depth: 500–1800 mm
Area temperature rise: <1℃
Power consumption: 65 W per head
Power input: AC100-240V 50/60HZ
Warranty: 2 Years
Characteristics / Technical Specifications
FY-5+5A LED surgical double-dome light engineered for operating rooms, offering stable, uniform illumination with a dual focus-adjustable petal head design and upgraded lamp control. Low-heat, low-power output ensures comfort for surgical teams and patients. Suitable for major, general and plastic surgeries.
Key Features
- Unique focus-adjustable petal double lamp head design
- Independent grip on each petal for precise adjustment
- Upgraded and optimized lamp control system
- Manual focus adjustment via central handle
- 65 high-quality LED bulbs per lamp head
- Adjustable brightness: 40,000–160,000 Lux
- Adjustable color temperature: 3700K–5000K
- High color rendering Ra 85–97 for accurate tissue color
- Ultra-deep illumination depth: 500–1800 mm
- Low heat emission (Area temperature rise <1℃)
- ABS housing with slim lamp head thickness ≤10 cm
- Long LED lifespan ≥80,000 hours
- Ceiling-mounted installation
Technical Specifications
Lamp head design: Dual focus-adjustable petal lamp head with grip on each petal
Control system: Optimized upgraded lamp control
Focus adjustment: 120–300 mm, manual via central handle
Installation type: Ceiling-mounted
Housing material: ABS
Lamp head thickness: ≤10 cm
Lamp head diameter: 720 mm / 720 mm
Horizontal lamp head reach: 800+900+720 mm
Light source: LED (lifespan ≥80,000 hrs)
LED bulbs: 65 pcs per head
Brightness: 40,000–160,000 Lux, adjustable
Color temperature: 3700K–5000K, adjustable
Ra index: 85–97
Lighting depth: 500–1800 mm
Area temperature rise: <1℃
Power consumption: 65 W per head
Power input: AC100-240V 50/60HZ
Warranty: 2 Years
Characteristics / Technical Specifications
- Lamp head design: Dual focus-adjustable petal lamp head with grip on each petal
- Control system: Optimized upgraded lamp control
- Focus adjustment: 120–300 mm, manual via central handle
- Installation type: Ceiling-mounted
- Housing material: ABS
- Lamp head thickness: ≤10 cm
- Lamp head diameter: 720 mm / 720 mm
- Horizontal lamp head reach: 800+900+720 mm
- Light source: LED (lifespan ≥80,000 hrs)
- LED bulbs: 65 pcs per head
- Brightness: 40,000–160,000 Lux, adjustable
- Color temperature: 3700K–5000K, adjustable
- Ra index: 85–97
- Lighting depth: 500–1800 mm
- Area temperature rise: <1℃
- Power consumption: 65 W per head
- Power input: AC100-240V 50/60HZ
- Warranty: 2 Years
