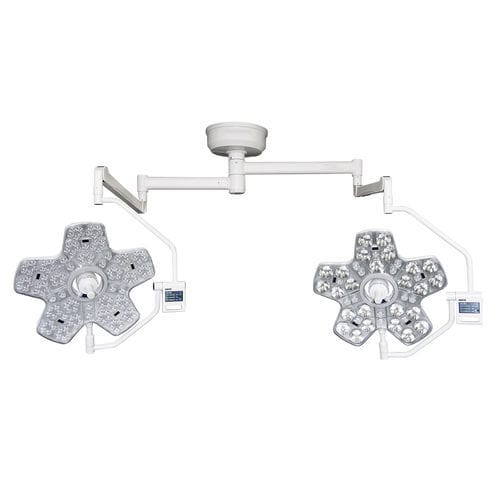

Ceiling-mounted surgical light FY-720720

LEDfor operating roomsgeneral medicine

Product Name
FY-720720 ceiling-mounted LED shadowless surgical lamp for operating rooms, designed for stable, adjustable illumination.

Core Highlights

• Automatic shadow compensation for consistent surgical field illumination
• 6‑lens optical system for uniform and focused light
• Smart touch control with option for touch control ring
• Imported Osram LED chips with long lifespan
• High color rendering for accurate tissue visualization (Ra ≥97)
• Low heat emission to protect patient and staff
• Wide voltage input (AC 100–240V) for global compatibility
• Flexible double arm with wide positioning range (800+900 mm)
• 2‑year warranty

Technical Parameters

• Model: FY-720720 (720720 Ceiling)
• Control: Smart touch control; detachable central handle; optional touch control ring
• Optical system: 6‑lens unit
• Function: Automatic shadow compensation
• Lamp head diameter: 720 mm
• Light source: LED, lifespan ≥60,000 hrs
• LED chips: Imported Osram
• LED quantity: 140 pcs
• Brightness: 40,000–160,000 Lux, 10‑step adjustable
• Lighting focus: 120–350 mm, adjustable via touch control or handle
• Color temperature: 3000K–5000K, 5‑step adjustable
• Color rendering index Ra: ≥97; R9/R13/R15: ≥95
• Lighting depth (L1+L2): ≥1500 mm
• Area temperature rise: <0.5 ℃
• Power consumption: 100 VA
• Power input: AC 100–240V 50/60Hz, switching power supply
• Arm reach: 800 + 900 mm
• Warranty: 2 years

Product Features

• Automatic shadow compensation maintains stable illumination even when partially occluded
• Professional 6‑lens unit produces uniform, high‑quality light spot
• Smart touch control ensures intuitive adjustment of brightness, focus and color temperature
• Imported Osram LEDs deliver reliable performance and long service life
• 10‑level brightness adjustment suitable for different surgical procedures
• Adjustable focus via touch panel or central handle for precise illumination
• 5‑level color temperature adjustment to optimize visual comfort
• Ultra‑high color rendering enables clear distinction of tissue colors
• Extra‑deep lighting depth supports deep‑cavity operations
• Minimal temperature rise for patient and staff safety
• Energy‑efficient design with stable wide‑voltage power supply
• Detachable central handle; optional touch control ring for sterility and convenience
• Flexible double arm for broad movement range and precise positioning
• 2‑year warranty for standard commercial use

Application
Intended as an illumination source for medical institutions during a wide range of surgical procedures, including general, orthopedic and deep‑cavity operations.

Technical Specifications

• Model: FY-720720 (720720 Ceiling)
• Lamp head diameter: 720 mm
• Optical system: 6‑lens unit
• LED quantity: 140 pcs (Osram)
• Brightness: 40,000–160,000 Lux (10 steps)
• Color temperature: 3000K–5000K (5 steps)
• Color rendering index Ra ≥97; R9/R13/R15 ≥95
• Lighting focus: 120–350 mm (adjustable)
• Lighting depth: ≥1500 mm
• Power consumption: 100 VA; Input AC 100–240V 50/60Hz
• Arm reach: 800 + 900 mm
• Area temperature rise: <0.5 ℃
• LED lifespan: ≥60,000 hrs
• Control: Smart touch control; detachable central handle; optional touch control ring
• Warranty: 2 years
