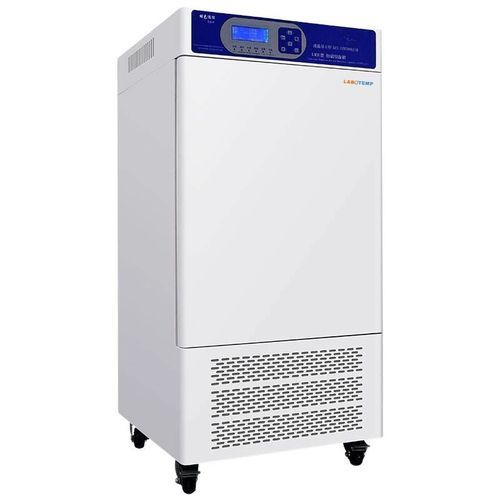

Plant growth test chamber PGC-01

thermostaticclimatichumidity

Overview
Labotemp Small Plant Growth Chamber PGC-01 is a precision-engineered climate-controlled chamber for controlled-environment simulation in laboratories, research institutes and commercial horticulture. The 100 L unit supports plant culture, seed germination, tissue culture, algal cultivation and Drosophila studies. The LCD PID controller provides ±0.1 °C accuracy with ±0.5 °C fluctuation and humidity control from 40–95% RH (±3%).

Key Highlights

• Temperature range: 0–65 °C with ±0.1 °C control accuracy
• Humidity control: 40%–95% RH with ±3% stability
• Illumination: ≥5000 LUX; programmable photoperiod and lighting modes (laminate or three-side)
• Intelligent humidification with automatic water refill
• R134a refrigeration with auto-defrost and reliable compressor
• Mirror stainless-steel interior (580×450×380 mm) with adjustable illuminated shelves
• LCD PID controller with alarms and power-failure recovery
• Manufactured to ISO 13485 and CE standards

Features

• Auto defrost system
• Compact 100 L footprint
• Precise temperature, humidity and light control
• Programmable climate and photoperiod profiles
• Energy-efficient R134a refrigeration
• Mirror-finish stainless-steel chamber with adjustable shelves
• Intelligent humidification with auto refill
• LCD PID controller with alarm and recovery functions
• Optional laminate or three-side lighting
• Controlled airflow to protect seedlings and small samples

Applications

• Plant culture and physiological research
• Seed germination and tissue culture
• Algal cultivation and reproduction studies
• Cultivation of Drosophila and small insects
• Commercial horticulture and nursery trials
• Plant-derived pharmaceutical and biopharmaceutical research
• Use in biotechnology companies, universities and research institutes

Standard Accessories

• Programmable LCD PID controller
• Partitions with built-in light tubes (lit shelves)
• Power cord

Optional Accessories

• Touchscreen controller
• Printer
• Illuminated partition
• Lighting dimming control

Specifications (table)
Temperature Range : 0–65 °C
Volume : 100 L
Power : 0.9 KW
Interior Size (H×W×D) : 580×450×380 mm
Voltage : 220 V
Temperature Accuracy : 0.1 °C
Temperature Fluctuation : ±0.5 °C
Humidity Fluctuation : ±3 %
Humidity Range : 40%–95%
Timer : 0–999 min
Shelves with Lights : 1 pc
LUX : ≥5000 LUX
Packing Size (mm) : 1400x690x740 mm
Net Weight : 100 kg
Gross Weight : 120 kg

Technical specifications

• Model: PGC-01
• Chamber volume: 100 L
• Temperature control range: 0–65 °C
• Temperature accuracy: 0.1 °C
• Temperature fluctuation: ±0.5 °C
• Humidity range: 40%–95% RH
• Humidity fluctuation: ±3 %
• Illumination: ≥5000 LUX (programmable)
• Interior dimensions (H×W×D): 580×450×380 mm
• Power consumption: 0.9 KW
• Supply voltage: 220 V
• Timer: 0–999 min
• Shelves with lights: 1 pc (adjustable)
• Refrigerant: R134a with auto-defrost
• Packed dimensions (mm): 1400x690x740
• Net weight: 100 kg; Gross weight: 120 kg
