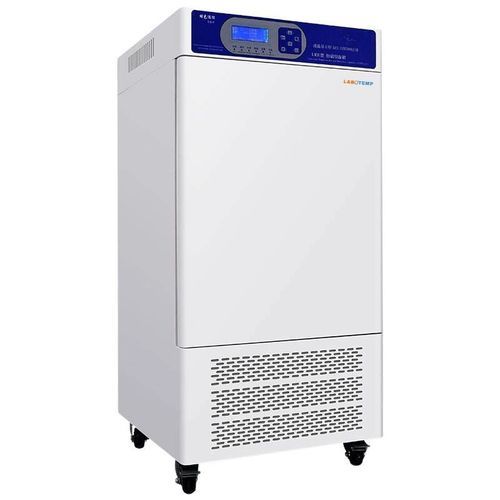

Thermostatic test chamber PGC-09

climatichumiditytemperature

Overview
Labotemp Plant Growth Chamber PGC-09 is a precision climate-controlled chamber designed for regulated cultivation, seed germination, tissue culture and advanced botanical research. The 350 L stainless-steel chamber maintains stable environmental simulation across a temperature range of 0–65 °C with ±0.1 °C accuracy and ±0.5% fluctuation, supported by a programmable LCD PID controller. High-intensity three-sided illumination delivers 15000 LX with adjustable airflow to ensure uniform light distribution while protecting delicate seedlings. The chamber uses energy-efficient R134a refrigeration with auto-defrost, includes alarm systems and power-failure recovery, and features sealed glass lamp structure allowing lamp replacement without disturbing cultivation cycles.

Key Benefits

• Uniform three-sided lighting (15000 LX) for consistent plant development.
• Laboratory-grade safety: alarms, sealed lighting and power-failure auto-recovery.
• High-precision environmental control with programmable simulation and ±0.1 °C accuracy.

Features

• 350 L capacity with long-cycle timing (0–9999 min).
• Three-sided lighting design (both sides + door) to enhance illumination uniformity.
• Sealed glass between lamps and chamber to allow lamp replacement without interrupting cultures.
• Adjustable airflow control to limit excessive air movement over seedlings.
• Programmable control of temperature, humidity, airflow and illumination.
• Energy-efficient R134a refrigeration with low temperature fluctuation and auto-defrost.
• Stainless-steel inner chamber with adjustable shelves (2 pcs).
• LCD PID controller with alarms and power-failure recovery.

Standard Accessories

• Programmable LCD PID controller.
• Partitions with built-in light tubes (lighted shelves).
• Power cord.

Optional Accessories

• Touchscreen controller.
• Printer.
• Illuminated partition.
• Lighting dimming control.

Applications

• Plant research and commercial horticultural cultivation.
• Pharmaceutical plant-source research, plant culture, seed germination and tissue culture.
• Algal reproduction and cultivation of small model insects (including Drosophila).

Specifications (table)
Temperature Range : 0–65 °C
Volume : 350 L
Power : 1.2 KW
Interior Size (H×W×D) : 1000×580×600 mm
Voltage : 220 V
Temperature Accuracy : ±0.1 °C
Temperature Fluctuation : ±0.5 %
Timer : 0–9999 min
Shelf : 2 pcs
LUX : 15000 LX
Packing Size (mm) : 1945×1000×915 mm
Net Weight : 240 kg
Gross Weight : 260 kg

Technical specifications

• Model: PGC-09
• Brand: Labotemp
• Temperature range: 0–65 °C
• Temperature accuracy: ±0.1 °C
• Temperature fluctuation: ±0.5 %
• Volume: 350 L
• Illumination: 15000 LX, three-sided
• Power consumption: 1.2 KW
• Timer range: 0–9999 min
• Interior dimensions (H×W×D): 1000×580×600 mm
• Voltage: 220 V
• Shelves: 2 pcs, adjustable
• Refrigerant: R134a with auto-defrost
• Controller: LCD PID programmable with alarms and power-failure recovery
• Inner chamber material: Stainless steel
• Packing size (mm): 1945×1000×915 mm
• Net weight: 240 kg
• Gross weight: 260 kg
• Compliance: ISO 13485 and CE (as stated)
