Plant growth test chamber PGC-10

climatichumiditytemperature

Product overview

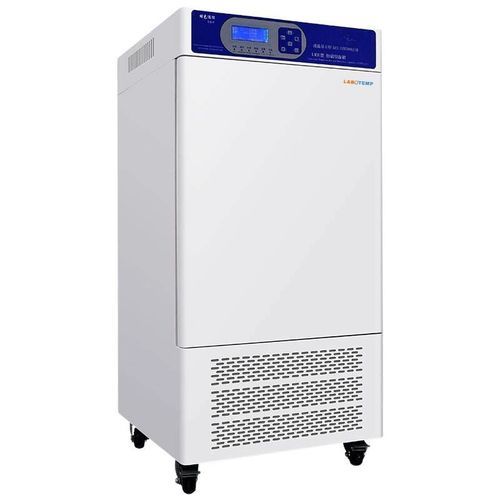

Labotemp Plant Growth Chamber PGC-10 is a laboratory chamber designed for controlled plant cultivation, seed germination, tissue culture and small-organism studies. The 150 L mirror-finish stainless-steel interior delivers programmable environmental control with a 0–65 °C temperature range, 40–95% relative humidity and ≥15,000 lux illumination for reproducible growth protocols.

Key capabilities
Programmable PID control with LCD, two-side plus door LED lighting for uniform illumination, integrated intelligent humidification with automatic water replenishment, automatic defrost and compressor delay protection. Timing functions, over-temperature alarm and data recovery after power failure support secure experimental workflows.

General specifications

• Model: PGC-10
• Capacity: 150 L
• Interior dimensions (H × W × D): 800 × 500 × 380 mm
• Packing size (mm): 1690 × 830 × 780
• Net weight: 160 kg; Gross weight: 180 kg
• Voltage: 220 V; Power: 1.3 kW

Temperature specifications

• Range: 0–65 °C
• Accuracy: ±0.1 °C
• Fluctuation: ±0.5 °C
• Timer: 0–9999 min

Humidity specifications

• Range: 40–95 % RH
• Fluctuation: ±3 %

Lighting specifications

• Configuration: 2-side + door LED lighting
• Illumination: ≥15,000 lux
• Shelf configuration: 2 adjustable shelves

Control & environmental system

• Programmable intelligent PID controller with LCD display
• Built-in intelligent humidification system with automatic water replenishment tank
• Fluorine-free R134 refrigerant; automatic defrost; compressor delay protection
• Over-temperature alarm and RS485 computer interface

Construction

• Interior: SUS 304 mirror stainless steel
• Door: tempered glass with silicone sealing ring
• Insulating glass and adjustable shelf spacing

Features

• Two-side and door LED lighting for improved distribution
• Integrated intelligent humidification with automatic refill
• High precision temperature control (±0.1 °C) and low fluctuation
• Automatic defrost and compressor protection for stable operation
• Timing function and power-failure data recovery
• Adjustable shelving and mirror stainless-steel interior for easy cleaning

Applications

• Plant research and controlled-environment growth studies
• Seed germination and seedling trials
• Tissue culture and plant-based pharmaceutical research
• Algal cultivation and small insect (e.g., Drosophila) rearing
• Commercial horticulture and academic or government laboratories

Technical specifications

• Temperature range: 0–65 °C
• Capacity: 150 L
• Power: 1.3 kW; Voltage: 220 V 50 Hz
• Interior size: 800 × 500 × 380 mm
• Temperature accuracy: ±0.1 °C; fluctuation: ±0.5 °C
• Humidity range: 40–95 %; fluctuation: ±3 %
• Timer: 0–9999 min; Shelves: 2 adjustable
• Packing size: 1690 × 830 × 780 mm; Net weight: 160 kg; Gross weight: 180 kg
