Plant growth test chamber PGC-04

climatichumiditytemperature

Product overview

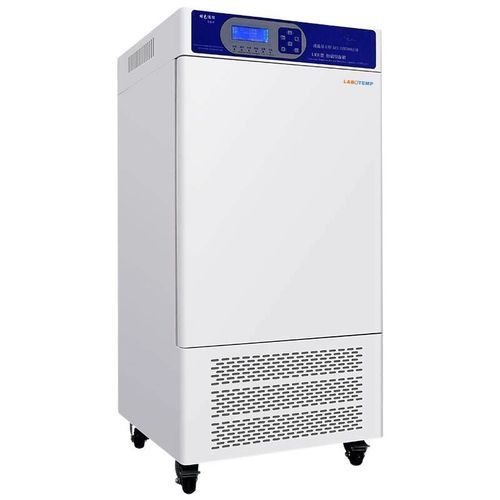

Labotemp Plant Growth Chamber PGC-04 is a precision controlled-environment chamber for plant growth, seed germination, tissue culture and small-organism studies. The 350 L stainless-steel interior supports temperature control from 0–65 °C with ±0.1 °C accuracy and ±0.5% fluctuation, humidity control 40–95% (±3%), and adjustable shelf-mounted illuminated trays providing ≥5000 LX. The unit includes an LCD PID controller for programmable temperature/humidity/illumination sequences, R134a refrigeration with auto-defrost, intelligent humidification with automatic water refill, adjustable shelves and uniform airflow.

Why choose Labotemp Plant Growth Chamber PGC-04?

• Laboratory-grade precision: ±0.1 °C accuracy and ±0.5% temperature fluctuation.
• Complete environmental control: programmable temperature, humidity, illumination and airflow.
• Sample protection: intelligent humidification with automatic refill and power-failure recovery.

Key features

• LCD PID controller for programmable control and monitoring.
• Stable simulation of temperature, humidity and light for plant growth protocols.
• Programmable sequences for temperature, humidity, airflow and illumination.
• Energy-efficient R134a refrigeration with low fluctuation and auto-defrost.
• Stainless-steel chamber interior with adjustable shelves and illuminated shelf trays.
• Intelligent humidification system with automatic water refill.
• Timing, alarm and power-failure recovery functions on the LCD PID controller.
• Laminate lighting design with controllable ventilation; illumination ≥5000 LX.

Applications

• Plant culture, seed germination and tissue-culture experiments.
• Algal cultivation and rearing of small organisms (e.g., Drosophila).
• Plant physiology studies, plant-derived pharmaceutical research and commercial horticulture.

Standard accessories

• Programmable controller (LCD PID).
• Partitions with built-in light tubes (illuminated shelves) — 2 pcs.
• Power cord.

Optional accessories

• Touchscreen controller.
• Printer.
• Illuminated partition.
• Lighting dimming control.

Technical specifications

• Temperature range: 0–65 °C.
• Volume: 350 L.
• Power / Rated power: 2.0 kW.
• Interior size (H×W×D): 1000 × 580 × 600 mm.
• Voltage: 220 V 50 Hz.
• Temperature accuracy: ±0.1 °C.
• Temperature fluctuation: ±0.5%.
• Humidity range: 40%–95%.
• Humidity fluctuation: ±3%.
• Timer: 0–999 min.
• Shelves with lights: 2 pcs (adjustable shelf-mounted illuminated trays).
• Illumination / LUX: ≥5000 LX.
• Refrigerant: R134a with auto-defrost.
• Humidification: Intelligent humidification system with automatic water refill.
• Controls & protection: LCD PID controller with timer, alarm and power-failure recovery.
• Airflow: Uniform airflow with controllable ventilation.
• Packing size: 1945 × 1000 × 915 mm.
• Net weight: 240 kg.
• Gross weight: 260 kg.
• Certifications / compliance: CE, ISO 13485 and international guidelines for laboratory equipment.
