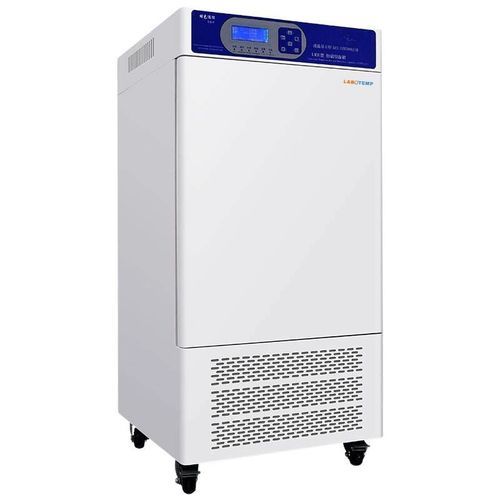

Thermostatic test chamber PGC-05

climatichumiditytemperature

Overview
Labotemp Plant Growth Chamber PGC-05 is a large-capacity environmental chamber engineered for controlled plant growth, seed germination, tissue culture and botanical research. The unit features an 800 L stainless-steel interior with adjustable shelf-mounted illuminated trays, uniform climate simulation, and programmable multi-parameter control for reproducible results.

Key capabilities

• Precise temperature control: 0–65 °C with ±0.1 °C accuracy and ±0.5% fluctuation.
• Programmable control of temperature, humidity, airflow and light cycles via LCD PID controller with timers, alarms and power-failure recovery.
• Energy-efficient R134a refrigeration system (3.7 kW) with automatic defrost for stable long-term operation.
• Intelligent humidification with automatic water refill and humidity control (40%–95% RH, ±3% fluctuation).
• Shelf-type lighting design providing high illumination (≥5000 LUX) and controllable airflow; includes 4 lighted shelves.

Why choose PGC-05

• Precision control for reproducible experiments through programmable multi-parameter simulation.
• Large 800 L capacity suitable for high-volume cultivation studies and batch experiments.
• Sample protection with alarms, auto-refill humidification and power-failure recovery features.

Applications

• Plant growth and cultivation, seed germination, tissue culture and algal reproduction.
• Small insect studies including Drosophila.
• Pharmaceutical plant-source research, biotech cultivation and academic experiments requiring controlled environments.

Standard accessories

• Programmable Controller (LCD PID)
• Partitions with built-in light tubes (lighted shelves)
• Power cord

Optional accessories

• Touchscreen controller
• Printer
• Illuminated partition
• Lighting dimming control

Manufacturing & Compliance
Designed and manufactured by Labotemp, the PGC-05 is compliant with ISO 13485 and CE standards and incorporates features to support reproducible environmental conditioning in laboratory and research settings.

Technical specifications

• Temperature Range: 0–65 °C
• Volume: 800 L
• Power: 3.7 kW (R134a refrigeration)
• Interior Size (H×W×D): 1200×1050×650 mm
• Voltage: 220V 50Hz / 110V 60Hz
• Temperature Accuracy: ±0.1 °C
• Temperature Fluctuation: ±0.5 %
• Humidity Range: 40%–95%
• Humidity Fluctuation: ±3 %
• Timer: 0–999 min
• Shelves with Lights: 4 pcs
• Illumination (LUX): ≥5000 LUX
• Packing Size (mm): 2145×1395×1185
• Net Weight: 380 kg
• Gross Weight: 400 kg
