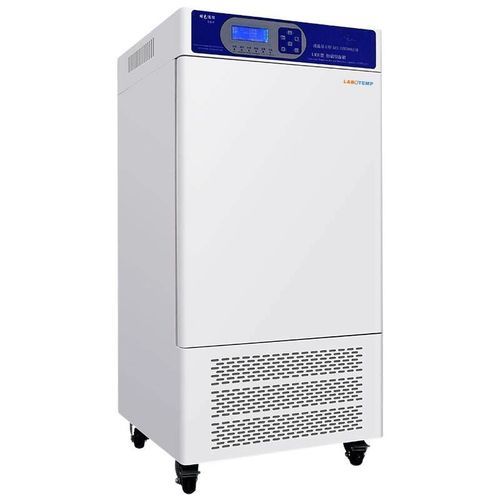

Climate chamber PGC-03

thermostaticlightinghumidity

Overview
Labotemp Plant Growth Chamber PGC-03 is a precision environmental chamber for controlled plant growth, seed germination, tissue culture and small-organism studies. The 250 L stainless-steel interior delivers stable conditions with a 0–65 °C temperature range, temperature accuracy ±0.1 °C, temperature fluctuation ±0.5% and humidity fluctuation ±3%. Energy-efficient R134a refrigeration, auto-defrost and an LCD PID programmable controller ensure reproducible results.

Features

• R134a refrigerant with energy-efficient compressor
• 250 L stainless-steel chamber with adjustable lighted shelves
• Precise control of temperature, humidity and airflow
• Programmable LCD PID controller with timing, alarms and power-failure recovery
• Automatic humidification with water refill
• Uniform low-noise airflow and auto-defrost
• Integrated lighting system ≥5000 LX

Applications

• Controlled plant growth and cultivation
• Seed germination tests
• Tissue culture and plant biotechnology
• Algal culture and reproduction studies
• Small insect and Drosophila experiments
• Plant-derived pharmaceutical R&D
• Biotech, academic and QC laboratories

Standard Accessories

• Programmable LCD PID controller
• Lighted shelves (2 pcs)
• Power cord

Optional Accessories

• Touchscreen controller
• Printer
• Additional illuminated partitions
• Lighting dimming control

Technical Specifications

• Temperature range: 0–65 °C
• Volume: 250 L
• Power: 1.5 KW
• Interior size (H×W×D): 1000×550×450 mm
• Voltage: 220 V
• Temperature accuracy: ±0.1 °C
• Temperature fluctuation: ±0.5 %
• Humidity fluctuation: ±3 %
• Timer: 0–999 min
• Shelves with lights: 2 pcs
• Illuminance: ≥5000 LX
• Packing size (mm): 1910×810×810
• Net weight: 200 kg
• Gross weight: 220 kg
