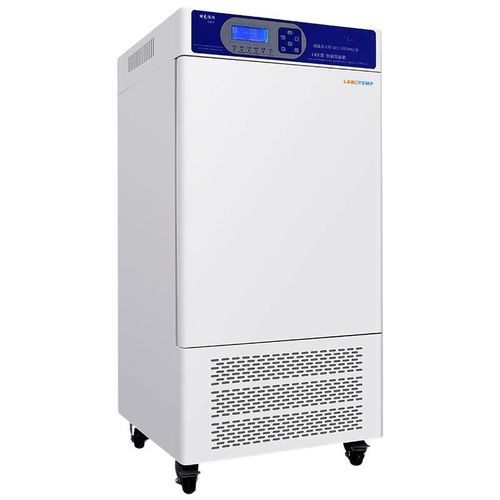

Thermostatic test chamber PGC-06

climatichumiditytemperature

Product Overview
Labotemp Plant Growth Chamber PGC-06 is a laboratory-grade environmental chamber designed for controlled plant cultivation, seed germination, tissue culture and small-organism studies. The 1000 L stainless-steel interior, programmable LCD PID controller and integrated illuminated shelves provide stable simulation of temperature, humidity and light to support reproducible experiments.

Design and Control
Engineered for plant physiology, algal reproduction, Drosophila work and plant-sourced pharmaceutical research, the PGC-06 offers programmable control of temperature, humidity, airflow and light cycles. Key control features include intelligent humidification with automatic water refill, timer, alarm and power-failure recovery. The unit uses energy-efficient R134a refrigeration with auto-defrost and meets ISO 13485 and CE requirements for laboratory use.

Key Features

• 1000 L stainless-steel chamber with adjustable shelving and shelf-mounted illuminated trays
• Temperature range 0–65 °C with ±0.1 °C accuracy and ±0.5% fluctuation
• Humidity control 40%–95% with ±3% stability
• Programmable LCD PID controller (timing, alarm, power-failure recovery)
• Energy-efficient R134a refrigeration with auto-defrost
• Intelligent humidification system with automatic water refill
• Laminate shelf lighting; illumination ≥5000 LX

Standard Accessories

• Programmable LCD PID controller
• Partitions with built-in light tubes (4 illuminated shelves)
• Power cord

Optional Accessories

• Touchscreen controller
• Printer
• Additional illuminated partitions
• Lighting dimming control

Applications

• Plant growth and cultivation
• Seed germination tests
• Tissue culture and micropropagation
• Algal reproduction studies
• Small insect and Drosophila experiments
• Plant-derived pharmaceutical and biotech research

Technical Specifications

• Temperature Range: 0–65 °C
• Volume: 1000 L
• Power: 4.5 kW
• Interior Size (H×W×D): 1200 × 1200 × 700 mm
• Voltage: 220 V
• Temperature Accuracy: ±0.1 °C
• Temperature Fluctuation: ±0.5 %
• Humidity Range: 40%–95%
• Humidity Fluctuation: ±3 %
• Timer: 0–999 min
• Shelves with Lights: 4 pcs (shelf-mounted illuminated trays)
• Illumination: ≥5000 LX
• Packing Size (mm): 2200 × 1550 × 1250
• Net Weight: 480 kg
• Gross Weight: 500 kg
• Refrigerant / Cooling: R134a refrigeration with auto-defrost
• Controller: LCD PID (programmable) with alarm and power-failure recovery
