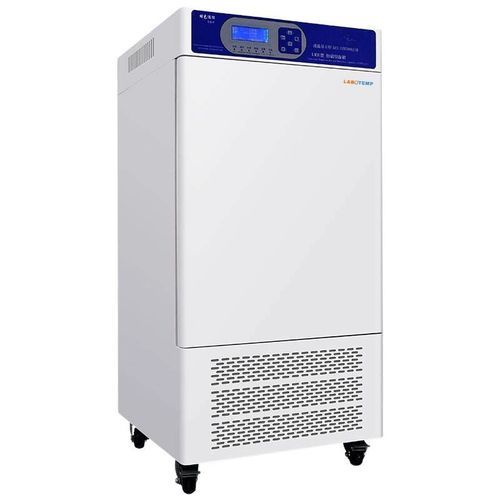

Thermostatic test chamber PGC-07

climatichumiditytemperature

Overview
Labotemp Plant Growth Chamber PGC-07 provides a programmable, controlled environment for seed germination, tissue culture and precision plant research. With a 150 L volume (interior 800×500×380 mm) it maintains 0–65 °C with ±0.1 °C accuracy and ±0.5% fluctuation via an LCD PID controller. Three-sided 10,000 LUX illumination (sides + door) with sealed-glass lamps allows lamp replacement without interrupting cycles. Adjustable airflow and programmable timing prevent desiccation and ensure uniform growth. Energy-efficient R134a refrigeration with auto-defrost, stainless-steel interior and adjustable shelves support stable, low-maintenance operation.

Key benefits

• Precision control: ±0.1 °C accuracy, programmable PID timing and high-intensity illumination for reproducible results.
• Reliable operation: R134a cooling, auto-defrost, alarm and power-failure recovery for continuous experiments.
• Lab-ready design: stainless-steel chamber, sealed lamps and adjustable shelving for flexible sample layouts.

Features

• Ultra-bright 10,000 LUX illumination.
• Three-sided lighting (both sides + door) for uniform light distribution.
• Sealed-glass lamp design enables lamp replacement without interrupting cultivation cycles.
• Adjustable airflow control to minimise dehydration of seedlings and cultures.
• Programmable simulation of temperature, humidity and lighting cycles.
• LCD PID controller for precise temperature and humidity management with alarm and recovery functions.
• Energy-efficient R134a refrigerant with low temperature fluctuation and automatic defrost.
• Stainless-steel inner chamber with adjustable shelves (4 pcs standard).

Standard Accessories

• Programmable LCD PID controller.
• Partitions with built-in light tubes (lighted shelves).
• Power cord.

Optional Accessories

• Touchscreen controller.
• Printer.
• Illuminated partition.
• Lighting dimming control.

Applications

• Plant research and commercial horticulture cultivation.
• Seed germination, tissue culture and plant-source pharmaceutical work.
• Algal reproduction and rearing of small organisms (e.g., Drosophila).

Technical specifications

• Temperature range: 0–65 °C
• Volume: 150 L
• Power: 0.9 kW
• Interior size (H×W×D): 800×500×380 mm
• Voltage: 220 V / 110 V 50/60 Hz
• Temperature accuracy: ±0.1 °C
• Temperature fluctuation: ±0.5 %
• Timer: 0–9999 min
• Shelves: 4 pcs (adjustable)
• Illumination: 10,000 LUX
• Packing size (mm): 1690×830×780
• Net weight: 160 kg
• Gross weight: 180 kg
• Refrigerant: R134a with auto-defrost
• Controller: LCD PID with alarm and power-failure recovery
