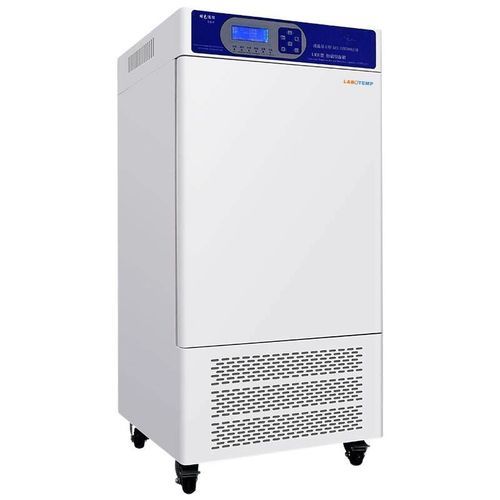

Plant growth test chamber PGC-11

thermostaticclimatichumidity

Overview
Labotemp Plant Growth Chamber PGC-11 is a laboratory-grade environmental chamber for precise plant growth, seed germination, tissue culture and small-organism studies. The chamber provides a 250 L mirror stainless-steel interior, temperature control from 0–65 °C with ±0.1 °C PID accuracy and ±0.5 °C fluctuation, humidity control from 40–95% with ±3% fluctuation, and high-intensity three-side illumination at 15,000 LUX. It features programmable LCD PID control, long-cycle timer, two adjustable shelves, sealed-glass lamps, energy-efficient R134a refrigeration with auto-defrost, intelligent humidification with automatic refill, adjustable airflow, alarm and power-failure recovery. Designed to meet CE and ISO 13485 for reproducible, audit-ready performance.

Key selling points

• High-volume precision: 250 L capacity with ±0.1 °C PID control for stable experiments.
• Superior illumination: 15,000 LUX three-side lighting for uniform plant growth.
• Secure operation: Auto-refill humidification, alarm and power-failure recovery for long runs and sensitive samples.

Features

• 0–65 °C temperature range
• 15,000 LUX three-side lighting
• Constant simulation of temperature, humidity and lighting for real climate conditions
• Programmable PID controller with LCD for precise control of temperature, humidity and illumination
• Three-side lighting design for uniform illumination
• Built-in intelligent humidification system with automatic water refill
• Balanced refrigeration with low fluctuation and automatic defrost
• Mirror stainless-steel chamber with adjustable shelves
• Energy-saving refrigerant (R134a)
• Lamps separated by sealed glass for easy replacement without disturbing samples

Standard accessories

• Programmable Controller (LCD PID)
• Partitions with built-in light tubes (lighted shelves)
• Power cord

Optional accessories

• Touchscreen controller
• Printer
• Illuminated partition
• Lighting dimming control

Applications

• Plant culture and growth studies
• Seed germination
• Tissue culture
• Algal growth
• Small insect (e.g., Drosophila) cultivation
• Research in biotechnology, pharmaceuticals, horticulture, universities and government labs

Specifications
Temperature Range : 0–65 °C
Volume : 250 L
Power : 1.5 kW
Interior Size (mm) : 1000×550×450
Voltage : 220 V
Temperature Accuracy : ±0.1 °C
Temperature Fluctuation : ±0.5 °C
Humidity Fluctuation (%) : ±3
Humidity Range : 40%–95%
Timer : 0–9999 min
Shelves : 2 shelves
LUX : 15000 LUX
Packing Size (mm) : 1900x930x900
Net Weight : 210kg
Gross Weight : 230kg

Technical specifications

• Model: PGC-11
• Temperature range: 0–65 °C
• Temperature accuracy: ±0.1 °C
• Temperature fluctuation: ±0.5 °C
• Humidity range: 40%–95% (±3%)
• Illumination: 15,000 LUX (three-side)
• Volume: 250 L
• Interior dimensions (mm): 1000×550×450
• Power consumption: 1.5 kW
• Voltage: 220 V
• Timer: 0–9999 min
• Shelves: 2 adjustable shelves
• Refrigerant: R134a with auto-defrost
• Construction: Mirror stainless-steel interior; sealed-glass lamps
• Packing size (mm): 1900x930x900
• Net weight: 210 kg; Gross weight: 230 kg
