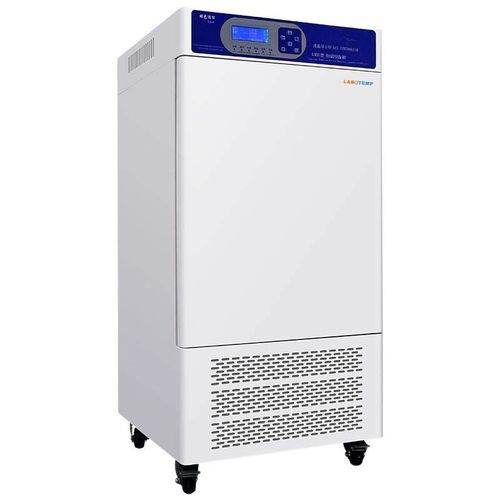

Plant growth test chamber PGC-12

thermostaticclimatichumidity

Product Overview
Labotemp Plant Growth Chamber PGC-12 is a laboratory-grade climate-controlled growth chamber engineered for precise plant culture, seed germination, tissue culture and small-organism studies. The 350 L mirror stainless-steel interior provides stable simulation across 0–65 °C with ±0.1 °C PID accuracy and ±0.5 °C fluctuation, humidity control 40–95% and three-side high-intensity illumination at 15,000 LUX. Programmable LCD PID control, a long-cycle timer (0–9999 min), two adjustable shelves and sealed-glass lamps enable uninterrupted, reproducible cultivation. Energy-efficient R134a refrigeration with auto-defrost maintains thermal stability.

Applications
Suitable for biotech, pharmaceutical, academic and commercial horticulture laboratories. Typical uses include plant-sourced pharmaceutical research, seed germination trials, tissue-culture propagation, algal growth and small-invertebrate studies. Intelligent humidification with automatic refill, adjustable airflow, alarm functions and power-failure recovery protect long runs and sensitive samples. Built to CE and ISO 13485 standards for audit-ready performance.

Why Choose Labotemp Plant Growth Chamber PGC-12?

• High-volume precision: 350 L capacity with ±0.1 °C PID accuracy.
• Superior lighting and airflow: three-side 15,000 LUX illumination and adjustable circulation for uniform growth.
• Sample protection: automatic humidification refill, sealed lamps, alarm and power-failure recovery.

Key Features

• Temperature accuracy: 0.1 °C (PID).
• Continuous simulation of temperature, humidity and lighting for realistic climate conditions.
• Programmable PID controller with LCD for precise control of temperature, humidity and illumination.
• Three-side lighting design (2 sides + door) for uniform plant illumination.
• Built-in intelligent humidification system with automatic water refill.
• Balanced refrigeration with low fluctuation and automatic defrosting.
• Mirror stainless-steel chamber with two adjustable shelves.
• Energy-saving R134a refrigerant.
• Lamps separated by sealed glass for replacement without disturbing specimens.

Standard Accessories

• Programmable controller (LCD PID).
• Partitions with built-in light tubes (lighted shelves).
• Power cord.

Optional Accessories

• Touchscreen controller.
• Printer.
• Illuminated partition.
• Lighting dimming control.

Technical specifications

• Temperature range: 0–65 °C
• Volume: 350 L
• Power: 1.8 kW
• Interior size (mm): 1000 × 580 × 600
• Voltage: 220 V
• Temperature accuracy: ±0.1 °C
• Temperature fluctuation: ±0.5 °C
• Humidity fluctuation: ±3 %
• Humidity range: 40%–95%
• Timer: 0–9999 min
• Shelves: 2 shelves
• Illumination: 15000 LUX
• Packing size (mm): 1945 × 1000 × 915
• Net weight: 240 kg
• Gross weight: 260 kg
