Thermostatic test chamber PGC-02

climatichumiditytemperature

Product overview

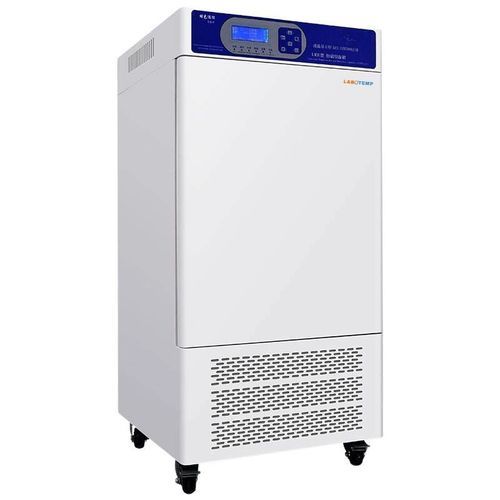

Labotemp Plant Growth Chamber PGC-02 is a precision environmental chamber designed for controlled plant growth, seed germination and laboratory cultivation. It provides 150 L capacity, 0–65 °C temperature range with ±0.1 °C accuracy and ±0.5% fluctuation, humidity 40–95% RH (±3%) and illumination ≥5000 LX for reproducible experimental conditions. Suitable for seed germination, tissue culture, algal studies, small insect and Drosophila research, and plant-derived pharmaceutical development.

Control & operation
Equipped with an LCD PID controller offering programmable temperature, humidity, airflow and light cycles plus a 0–9999 min smart timer. Energy-efficient R134a refrigeration with auto-defrost reduces fluctuation. The stainless-steel interior with adjustable shelves and shelf-mounted illuminated trays ensures uniform airflow and specimen protection.

Key features

• 0–9999 min Smart Timer (note: specification table lists Timer: 0–999 min; product text and features also reference 0–9999 min Smart Timer)
• Precise control of temperature, humidity and light for plant growth
• Programmable cycles for temperature, humidity, airflow and illumination
• R134a refrigeration with low fluctuation and auto-defrost
• Stainless-steel interior with adjustable shelves and lighted shelf trays
• Intelligent humidification with automatic water refill
• LCD PID controller with timing, alarm and power-failure recovery
• Laminate lighting design with controllable airflow; illumination ≥5000 LX

Standard accessories

• Programmable LCD PID controller
• Partitions with built-in light tubes (lighted shelves) — 2 pcs
• Power cord

Optional accessories

• Touchscreen controller
• Printer
• Illuminated partition
• Lighting dimming control

Applications

• Plant growth and cultivation
• Seed germination and tissue culture
• Algal reproduction studies
• Small insect and Drosophila research
• Plant-source pharmaceutical research
• Biotech and academic laboratory research

Technical specifications

• Temperature range: 0–65 °C
• Volume: 150 L
• Power: 1.2 KW
• Interior size (H×W×D): 800 × 500 × 380 mm
• Voltage: 220 V
• Temperature accuracy: ±0.1 °C
• Temperature fluctuation: ±0.5%
• Humidity range: 40%–95% RH
• Humidity fluctuation: ±3%
• Timer: 0–999 min (spec table) — product features also reference 0–9999 min Smart Timer
• Shelf with lights: 2 pcs
• Illumination: ≥5000 LX
• Packing size (mm): 1620 × 750 × 750
• Net weight: 140 kg
• Gross weight: 160 kg
