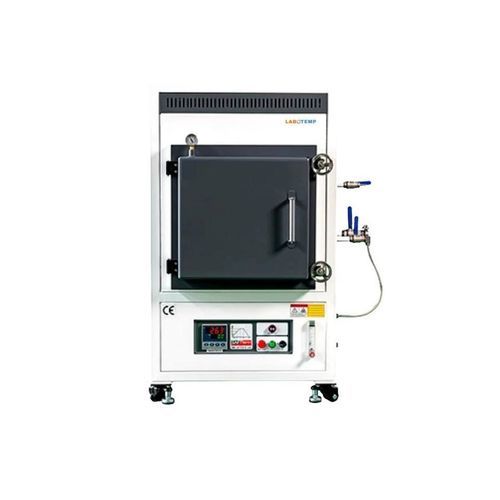

Annealing furnace FVA-02

heat treatmentcuringsintering

Product Overview
Labotemp Vacuum Furnace FVA-02 is a laboratory vacuum furnace designed for controlled vacuum heat treatment, sintering, annealing and materials research. The unit operates up to 1200°C and features an 8 L chamber (200×300×120 mm) with HRE wire heating elements to promote uniform temperature distribution. The pre-vacuum configuration minimizes oxidation and enables repeatable results in demanding lab environments.

Key Benefits

• Uniform heating: HRE elements provide stable temperatures up to 1200°C
• Reduced oxidation: pre-vacuum design supports clean processing
• Compact footprint: 8 L chamber suited to lab-scale samples

Features

• Inert-gas compatible
• Compact vacuum-capable box furnace for laboratory heat treatment up to 1200°C
• HRE wire heating elements for stable, uniform performance
• Pre-vacuum chamber for atmosphere control and oxidation reduction
• 200×300×120 mm chamber for medium-sized samples and research workloads
• 220V supply, low power consumption (3 kW) and reliable temperature control

Applications

• Annealing, heat treatment, sintering and curing under partial vacuum or inert gas
• Materials research, university laboratories and industrial R&D facilities
• Powder metallurgy, ceramics, electronic components and sample preparation where reduced oxidation is required

Optional Accessories

• Rotary pump
• SiC bottom plate (hearth plate)
• Gas float flowmeter
• N-type thermocouple

Specifications (table)
Model NO. : FVA-02
Volume (L) : 8
Max Temp (°C) : 1200
Working Temp (°C) : 1100
Voltage : 220V 50Hz
Power (kW) : 3
Chamber Size (mm) : 200×300×120
Heating Element : HRE Wire
Vacuum / Pump System : No (Pre-vac Only)
Cooling Requirement : No
Gross Weight : 150kg
Package Size : 1120x790x1120 mm

Characteristics / Technical Specifications

• Model NO.: FVA-02
• Volume: 8 L
• Maximum temperature: 1200 °C
• Working temperature: 1100 °C
• Chamber size (W×D×H): 200×300×120 mm
• Heating elements: HRE wire
• Power: 3 kW
• Supply: 220V 50Hz
• Vacuum/Pump: Pre-vacuum design (no integrated pump)
• Cooling requirement: None (no external cooling required)
• Gross weight: 150 kg
• Package dimensions: 1120 x 790 x 1120 mm
