Vacuum furnace FVA-15

annealingheat treatmentsintering

Overview

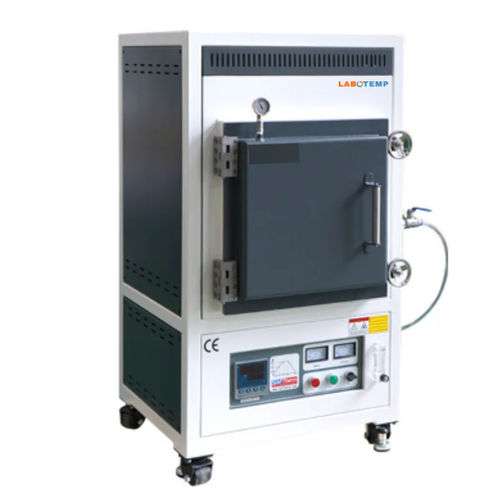

The Labotemp FVA-15 vacuum/atmosphere furnace provides a 36 L box chamber (300×400×300 mm) for high-temperature processing up to 1700°C (continuous operation at 1600°C). It supports pre-vacuum and inert-gas atmospheres for sintering, annealing, material synthesis and R&D workflows in laboratories and pilot production. The furnace integrates MoSi₂ rod heaters, high-temperature ceramic fiber insulation and a B-type thermocouple for precise, uniform heating in demanding applications.

Design & Control
Robust double-shell construction with built-in cooling fan, water inlet/outlet connections and reliable high-temperature sealing. Side-opening door and stainless sealing components facilitate loading and maintenance. The LCD touch-screen controller provides programmable multi-stage profiles (15 program curves, 30 segments per program, 450 total segments) with ±1°C control precision. Vacuum capability to ≤ 20,000 Pa with mechanical vacuum gauge; gas inlet/outlet ports and float flow meter for inert gas processing. Safety features include overheat protection and thermocouple-break alarm.

Key Features

• Continuous operation at 1600°C; maximum temperature 1700°C
• 36 L box chamber (300×400×300 mm) for large samples and pilot batches
• Eight MoSi₂ rod heaters for reliable high-temperature performance
• B-type thermocouple and LCD touch controller with ±1°C precision
• Vacuum and inert-gas processing (argon, nitrogen and other gases)
• High-temperature alumina ceramic fiber insulation for thermal efficiency
• Double-shell cooling design with water connections and built-in fan
• Programmable multi-stage heating: 15 curves, 30 segments/program, 450 segments total

Applications

• Material synthesis and high-temperature processing of advanced materials
• Sintering and annealing of ceramics and refractory materials
• Powder metallurgy and sintering of metal powders
• Heat treatment of alloys and components for aerospace and defense
• Semiconductor, crystal growth and materials research
• Laboratory R&D, pilot production and controlled-atmosphere testing

Specifications

• Furnace type: Vacuum atmosphere furnace, box chamber with side door
• Chamber volume / dimensions: 36 L (300 × 400 × 300 mm)
• Maximum temperature: 1700 °C; continuous operation: 1600 °C
• Temperature precision: ±1 °C (B-type thermocouple)
• Heating elements: 8 × MoSi₂ rod heaters; heating rate ≤ 15 °C/min (recommended 6–8 °C/min)
• Insulation: high-temperature alumina ceramic fiber
• Structure: double-shell with cooling fan; water inlet/outlet provided
• Power supply / rated power: 380 V three-phase, 13 kW
• Vacuum level: ≤ 20,000 Pa; vacuum port and mechanical vacuum gauge
• Gas ports: inlet and outlet; compatible with argon, nitrogen, etc.
• Protection: overheat protection, thermocouple-break alarm
• Net/Gross weight: 900 kg / 1000 kg

Standard Accessories

• High-temperature gloves
• Crucible tongs
• Operation manual

Optional Accessories

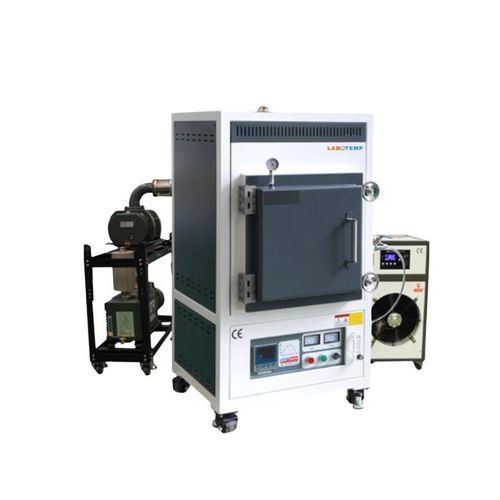

• Pump unit (rotary pump / diffusion / Roots configurations as specified)
• Water chiller (e.g. CA-02 / CA-06)
• Digital vacuum gauge
• One-channel gas flow meter (60–600 ml/min)

Technical specifications

• Model: FVA-15
• Chamber volume: 36 L
• Inner dimensions: 300 × 400 × 300 mm
• Max temperature: 1700 °C; continuous: 1600 °C
• Thermocouple: B-type
• Rated power: 13 kW; supply: 380 V, 3-phase, 50/60 Hz
• Heating elements: 8 × MoSi₂ rods
• Vacuum capability: ≤ 20,000 Pa
• Weight (net / gross): 900 kg / 1000 kg
