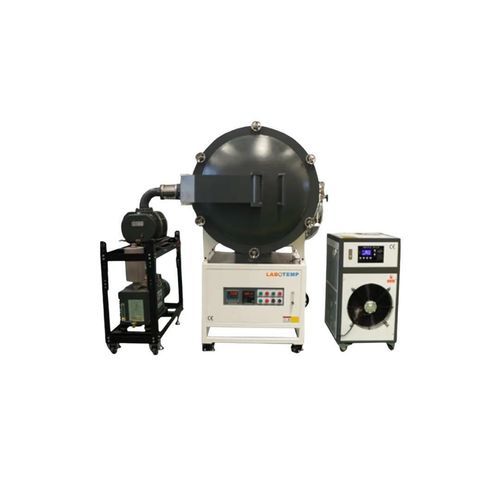

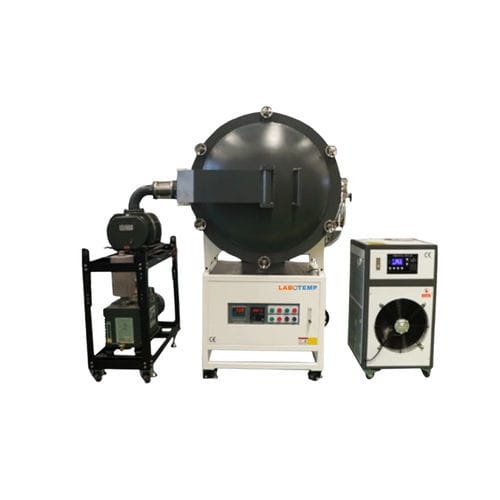

Annealing furnace FVA-13

heat treatmentsinteringfor scientific research

Product Overview
Labotemp Vacuum Furnace FVA-13 is an ultra-high-temperature laboratory vacuum furnace for precision heat treatment and materials research. It features a 12 L chamber (200×300×200 mm), maximum temperature 1700°C and working temperature up to 1600°C. The furnace supports vacuum heat treatment, vacuum annealing, high-temperature sintering and controlled-atmosphere processing for ceramics, metal alloys, composites and powder metallurgy.

Design & Performance
MoSi₂ rod heating elements provide rapid response, energy efficiency, uniform temperature distribution and long service life. Temperature measurement and control use a B-type (platinum-rhodium) thermocouple with Yudian or Shimaden controllers to ensure precise, repeatable temperature control. Integrated data logging enables process monitoring and documentation. The system includes water-cooling for safe, long-term high-temperature operation.

Why choose FVA-13?

• Ultra-high temperature capability up to 1700°C for advanced materials research.
• Precise B-type thermocouple control with Yudian / Shimaden controllers and data logging support.
• Efficient MoSi₂ rod heating elements for fast thermal response and stability.
• Water-cooled design for enhanced safety and component life at extreme temperatures.

Features

• Supports data logging for process recording and traceability.
• Ultra-high-temperature vacuum furnace designed for precision heat-treatment processes up to 1700°C.
• Equipped with MoSi₂ rod heating elements for fast response and long life at extreme temperatures.
• Controlled by B-type Yudian / Shimaden temperature controller for accurate programmable control up to 1600°C working temperature.
• Generous 200×300×200 mm chamber suitable for medium-sized samples and prototype production.
• Water-cooling safety system to protect internal components under vacuum at ultra-high temperatures.

Applications

• Sintering advanced ceramics and powder metallurgy processing.
• Crystal growth and high-temperature characterization.
• Metal alloy heat-treatment and composite material development.
• Use in aerospace, semiconductor, materials science laboratories, universities and industrial R&D.

Optional Accessories

• Pump unit: KT200 Diffusion Pump + BSV60 Rotary Backing Pump + BSJ70 Roots Pump
• Water Chiller CA-03
• Digital vacuum gauge

Technical specifications

• Model No.: FVA-13
• Volume (L): 12
• Chamber Size (mm): 200 × 300 × 200
• Max Temp (°C): 1700
• Working Temp (°C): 1600
• Voltage: 220V
• Power (kW): 6
• Heating Element: MoSi₂ Rod
• Thermocouple Type: B Type (platinum-rhodium)
• Controller: Yudian / Shimaden
• Cooling Requirement: Yes (Water Cooling)
• Net weight: 500 kg
• Gross weight: 600 kg
