Vacuum furnace FVA-08

brazingannealingheat treatment

Product Overview

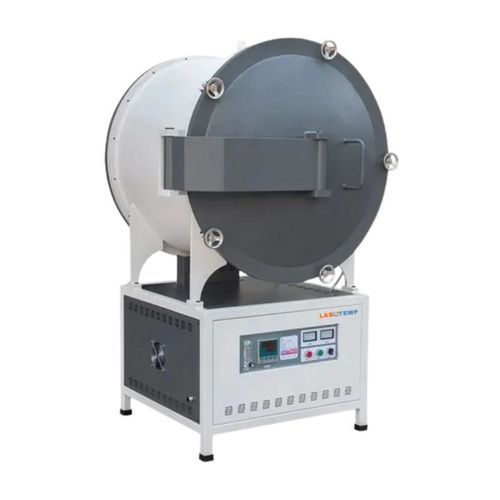

Labotemp Vacuum Furnace FVA-08 is a laboratory vacuum furnace for precise high-temperature processing in research and industrial R&D. It features a 12 L work chamber (200×300×200 mm), a maximum temperature of 1400°C and a recommended working temperature up to 1350°C. The unit supports vacuum heat treatment, vacuum annealing, vacuum brazing, sintering and controlled-atmosphere processes for ceramics, metals and powder metallurgy. SiC rod heating elements ensure rapid heat-up and uniform temperature distribution. A Shimaden S-type controller with S thermocouple provides accurate, repeatable temperature control. The system supports vacuum and inert-gas operation via a pump system and includes water-cooling for thermal stability and safety.

Key Benefits

• High-temperature capability to 1400°C for demanding material processes
• Precise and repeatable control with Shimaden S-type controller and S thermocouple
• SiC rod heating for fast, uniform heating and long cycle life
• Supports vacuum and inert-gas processing via pump-system integration
• Water-cooling for enhanced thermal stability and operational safety

Features

• Steel body construction for laboratory and R&D environments
• 12 L chamber (200 × 300 × 200 mm) suitable for medium-capacity sample processing
• SiC rod heating elements delivering efficient high-temperature performance
• Integrated Shimaden (Japan) S-type controller for accurate temperature regulation (working temp 1350°C)
• Vacuum/pump-system compatible for vacuum and inert-gas workflows
• Water-cooling arrangement to manage thermal loads and protect components

Applications

• Ceramic sintering and advanced ceramics processing
• Powder metallurgy and metal powder sintering
• Electronic component fabrication and crystal growth
• High-temperature thermal treatments requiring low-oxygen conditions
• Materials research laboratories, universities, industrial R&D and metallurgy testing
• Prototype manufacturing and composite sintering

Technical Specifications

• Model No.: FVA-08
• Volume (L): 12
• Chamber Size (mm): 200 × 300 × 200
• Max Temperature (°C): 1400
• Working Temperature (°C): 1350
• Voltage: 220V
• Power (kW): 5
• Heating Element: SiC Rod
• Thermocouple Type: S Type
• Controller: Shimaden (Japan)
• Vacuum / Pump System: Pump system (supports vacuum and inert-gas operation)
• Cooling Requirement: Yes (Water Cooling)
