Annealing furnace FVA-05
heat treatmentsinteringfor scientific research

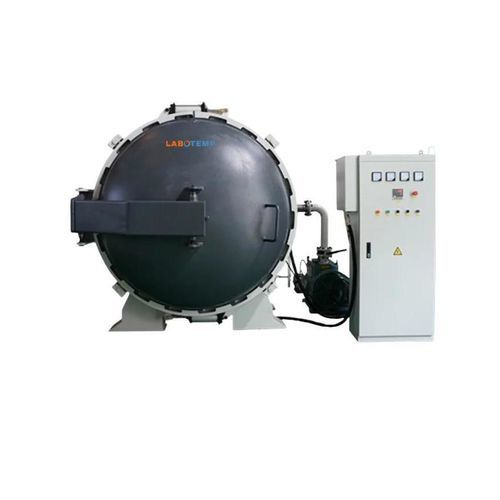

Annealing furnace - FVA-05 - Labotemp Systems - heat treatment / sintering / for scientific research
Annealing furnace - FVA-05 - Labotemp Systems - heat treatment / sintering / for scientific research
Annealing furnace - FVA-05 - Labotemp Systems - heat treatment / sintering / for scientific research - image - 2
Annealing furnace - FVA-05 - Labotemp Systems - heat treatment / sintering / for scientific research - image - 3
Annealing furnace - FVA-05 - Labotemp Systems - heat treatment / sintering / for scientific research - image - 4
Add to favorites
Compare this product
Go to the Labotemp Systems website for more information

Characteristics

Function
sintering, annealing, heat treatment
Applications
laboratory, for scientific research, for general purposes
Type
vacuum, multi-gas
Designed for
for ceramics, for metal
Configuration
floor-standing
Other characteristics
high-performance, high-capacity
Temperature range

Min.: 1,100 °C
(2,012 °F)

Max.: 1,200 °C
(2,192 °F)

Capacity

Min.: 30 l
(7.93 gal)

Max.: 30 l
(7.93 gal)

Description

Product overview
Labotemp Vacuum Furnace FVA-05 is a laboratory vacuum furnace designed for precision thermal processing in research and industrial environments. It features a 30 L chamber (300 × 500 × 200 mm) and operates up to 1200°C, suitable for vacuum annealing, sintering, degassing and powder metallurgy for metals, ceramics and composite materials. A Shimaden (Japan) N-type controller ensures accurate, repeatable temperature regulation. The unit supports vacuum and inert-gas operation to minimize oxidation and contamination. Powered by 380V with 7.5 kW output, the furnace is intended for pilot-scale and continuous laboratory operation.

Why choose Labotemp Vacuum Furnace FVA-05?
  • High-temperature capability up to 1200°C.
  • Precision control with Shimaden N-type controller for repeatable temperature profiles.
  • Versatile processing for annealing, sintering, degassing and powder metallurgy.
  • 7.5 kW power on 380V supply for stable laboratory operation.
  • ISO and CE compliance; shipping and installation support available.

Features
  • Digital vacuum gauge.
  • Large-capacity 30 L chamber for multiple samples or larger components.
  • HRE resistance wire heating elements for uniform heating and extended service life.
  • Shimaden (Japan) N-type temperature controller for accurate regulation and repeatability.
  • Supports vacuum and inert gas processing via pump system to reduce oxidation and contamination.

Applications
  • Sintering, annealing, degassing and thermal treatment of metals, ceramics and composites.
  • Material research laboratories, R&D units in manufacturing, universities and industrial testing centers.
  • Powder metallurgy, ceramics shaping, electronic component production and prototype manufacturing requiring controlled atmosphere.

Specifications
  • Model NO.: FVA-05
  • Volume: 30 L
  • Maximum temperature: 1200 °C
  • Working temperature: 1100 °C
  • Chamber dimensions: 300 × 500 × 200 mm
  • Power supply / Voltage: 380V
  • Power rating: 7.5 kW
  • Heating element: HRE resistance wire
  • Thermocouple: N-type
  • Controller: Shimaden (Japan)
  • Vacuum / Pump system: by pump system (supports vacuum and inert gas processing)
  • Cooling requirement: No
  • Net weight: 370 kg
  • Gross weight: 428 kg
