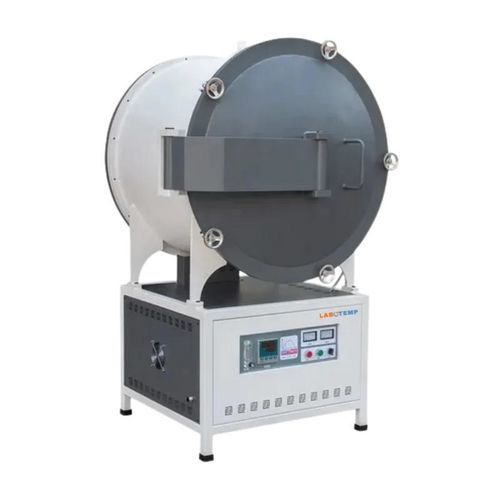

Brazing furnace FVA-10

annealingheat treatmentsintering

Product Overview
Labotemp Vacuum Furnace FVA-10 is a laboratory-scale vacuum furnace designed for high-temperature vacuum and controlled-atmosphere processing in R&D and pilot production. It provides a 36 L work chamber (300×400×300 mm) with a maximum temperature of 1400°C (rated working temperature 1350°C). SiC rod heating elements deliver fast heat-up and long operational life. Temperature control is managed by a Shimaden S-type controller with S-type thermocouple for precise, repeatable cycles. The furnace operates under vacuum or inert-gas environments via external pump systems to minimise oxidation and contamination and requires water cooling for continuous high-temperature operation. Power supply: 380V / 12 kW.

Key Features

• High-temperature capability: up to 1400°C (1350°C working)
• 36 L chamber (300×400×300 mm) for batch processing or larger components
• SiC rod heating elements for rapid heating and durability
• Shimaden S-type controller with S-type thermocouple for accurate control
• Compatible with vacuum and inert-gas processing via external pump system
• Water cooling required for sustained operation
• Electrical: 380V, 12 kW for fast heat-up and stable operation

Applications

• Advanced ceramic sintering and processing
• Metal heat treatment and vacuum brazing
• Powder metallurgy and sintering
• Crystal growth experiments and high-temperature testing
• Degassing and sample conditioning under reduced-oxygen or controlled-gas environments
• University laboratories, R&D centres and pilot production lines

Specifications (table)
Model No. : FVA-10
Volume (L) : 36
Max Temp (°C) : 1400
Working Temp (°C) : 1350
Voltage : 380V
Power (kW) : 12
Chamber Size (mm) : 300×400×300
Heating Element : SiC Rod
Thermocouple Type : S Type
Controller : Shimaden (Japan)
Vacuum / Pump System : External pump system required (vacuum / inert-gas compatible)
Cooling Requirement : Yes (water cooling)

Technical specifications

• Model: FVA-10
• Work chamber volume: 36 L
• Internal chamber size: 300 × 400 × 300 mm
• Maximum temperature: 1400°C
• Rated working temperature: 1350°C
• Heating elements: Silicon carbide (SiC) rod
• Temperature sensor: S-type thermocouple
• Temperature controller: Shimaden S-type
• Power supply: 380V, total power 12 kW
• Vacuum capability: Operates with external pump system (vacuum and inert-gas compatible)
• Cooling: Water cooling required
• Typical uses: vacuum brazing, annealing, sintering, degassing, controlled-atmosphere processing for ceramics, metals, composites and powder metallurgy
