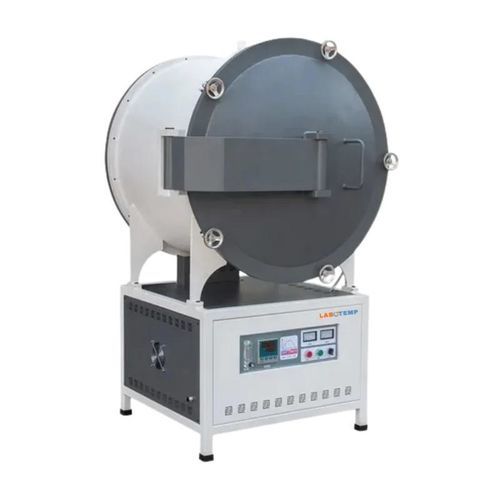

Brazing furnace FVA-06

annealingheat treatmentsintering

Product overview
Labotemp Vacuum Furnace FVA-06 is a laboratory vacuum furnace designed for precise high-temperature processing in research and materials laboratories. It features a 3 L chamber (150×150×150 mm), maximum temperature 1400°C (working temperature 1350°C), and supports vacuum annealing, sintering, brazing and controlled-atmosphere heat treatment for ceramics, metals, powder metallurgy and electronic components.

Key advantages

• High maximum temperature up to 1400°C for advanced material processing
• Precision temperature regulation with Shimaden S-type controller and S-type thermocouple
• SiC rod heating elements for fast heating response, uniform temperature distribution and extended service life
• Operation under vacuum or inert gas via external pump systems to limit oxidation and contamination
• Water-cooling protection for improved operational safety and equipment longevity

Features

• S-type thermocouple for high-accuracy temperature measurement
• Vacuum-capable high-temperature operation with good thermal uniformity up to 1400°C
• Silicon carbide (SiC) rod heating elements for rapid heating and durable cycling performance
• Shimaden (Japan) S-type temperature controller for precise, repeatable control (stable up to 1350°C working temperature)
• Compact 150×150×150 mm chamber suitable for small-batch research samples and laboratory test runs
• Vacuum or inert-atmosphere operation via an external pump system; water-cooling protection for safety and equipment durability

Applications

• Sintering and processing of technical ceramics
• Crystal growth and advanced materials development
• Powder metallurgy and sintering of precision metal parts
• Heat treatment of electronic components and laboratory sample testing under controlled atmosphere
• Use in research institutes, universities and materials science laboratories

Technical specifications

• Model NO.: FVA-06
• Volume (L): 3
• Chamber size (mm): 150×150×150
• Maximum temperature (°C): 1400
• Working temperature (°C): 1350
• Voltage: 220 V
• Power (kW): 2
• Heating element: SiC rod
• Thermocouple type: S type
• Controller: Shimaden (Japan)
• Vacuum / pump system: external pump required
• Cooling requirement: water cooling
