Vacuum furnace FVA-09

annealingheat treatmentburnout

Product overview

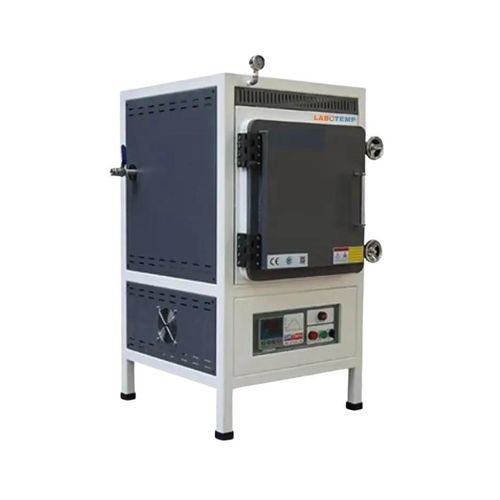

Labotemp Vacuum Furnace FVA-09 is a laboratory vacuum/atmosphere furnace with an 18 L chamber (250 × 300 × 250 mm), a maximum temperature of 1400 °C and a working range to 1300 °C. It is designed for controlled-atmosphere and pre‑vacuum thermal processing of ceramics, metals, composites and powder metallurgy materials for R&D and small-batch production.

Design & heating
The furnace uses SiC rod heating elements for fast thermal response, energy-efficient operation and uniform temperature distribution. A 6 kW heating output provides rapid heat-up and repeatable process control. The box-type construction and pre‑vacuum capability support reduced‑oxygen or inert‑gas processing to minimize oxidation during high‑temperature cycles (vacuum pump optional).

Key benefits

• High‑temperature capability up to 1400 °C with a 1300 °C working range.
• Uniform heating across the chamber via SiC rod elements for consistent sample results.
• Pre‑vacuum and controlled‑atmosphere processing to reduce oxidation risk.
• Compact laboratory footprint suitable for universities, research institutes and material development labs.

Features

• 18 L chamber: 250 × 300 × 250 mm.
• SiC rod heating elements for fast response and long service life.
• 6 kW rated power for rapid ramp rates and high throughput.
• Pre‑vacuum capability (pump not included) for low‑oxygen or inert atmosphere processing.
• Box‑type durable construction for laboratory use.

Applications

• Ceramic sintering, annealing and degassing.
• Powder metallurgy and composite material heat treatments under controlled atmosphere.
• Prototyping and processing of electronic components where oxidation control is required.
• R&D and material development in universities, institutes and industrial labs.

Optional accessories

• Water chiller
• Rotary (rotary vane) vacuum pump

Spare accessories

• SiC bottom plate
• Gas float flow meter

Specifications / Technical data

• Model No.: FVA-09
• Volume: 18 L
• Max temperature: 1400 °C
• Working temperature: 1300 °C
• Voltage: 220 V 50 Hz; 110 V 60 Hz
• Power: 6 kW
• Chamber size: 250 × 300 × 250 mm
• Heating element: SiC rod
• Vacuum / pump system: Pre‑vacuum capability (pump optional)
• Package size: 1420 × 1030 × 1420 mm
• Net weight: 450 kg
• Gross weight: 550 kg
