Vacuum furnace FVA-07

annealingheat treatmentsintering

Product Overview

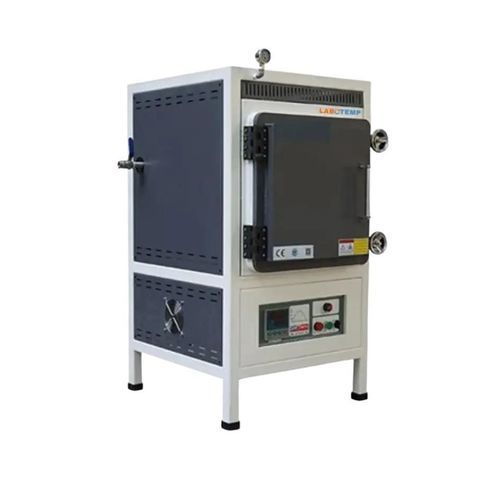

Labotemp Laboratory Vacuum Furnace FVA-07 is an 8 L box-type laboratory furnace engineered for stable high-temperature processing up to 1400°C. The 200 × 200 × 120 mm chamber, SiC rod heating elements and 5 kW output support vacuum heat treatment, sintering, annealing and controlled-atmosphere operations for ceramics, metals and composites in R&D and pilot facilities.

Key Benefits

• High-temperature capability up to 1400°C for sintering and thermal processing.
• Efficient SiC rod heating for fast ramp rates and improved thermal uniformity.
• Pre-vacuum operation enables low-oxygen or inert-gas treatments to minimize oxidation.
• Box-type, medium-capacity design optimized for laboratory and research use.

Features

• Box-style 200 × 200 × 120 mm chamber (8 L) suitable for samples and small batches.
• Maximum temperature 1400°C; recommended working temperature 1300°C.
• SiC rod heating elements for rapid heating, energy efficiency and long life under thermal cycling.
• Pre-vacuum capability (pump not integrated by default) for controlled-atmosphere processing.
• 5 kW heating power for fast heat-up while maintaining thermal uniformity.

Applications

• Ceramic sintering, metal heat treatment, annealing and degassing.
• Processing of composites and powder metallurgy samples.
• Material science institutes, university research centers and industrial development laboratories.
• Electronic components, prototypes and controlled-atmosphere sample processing.

Optional Accessories

• Vacuum pump (rotary or compatible vacuum pump options).
• Bottom/hearth plate.
• Gas float flowmeter.
• S-type thermocouple (upgrade option).
• Water chiller.
• Spare SiC rod heaters.

Specifications

• Model NO.: FVA-07
• Volume: 8 L
• Chamber size: 200 × 200 × 120 mm
• Max temperature: 1400 °C
• Working temperature: 1300 °C
• Voltage: 220 V
• Power: 5 kW
• Heating element: SiC rod
• Vacuum / Pump system: No (pre-vacuum operation only)
• Cooling requirement: No
