Product Overview

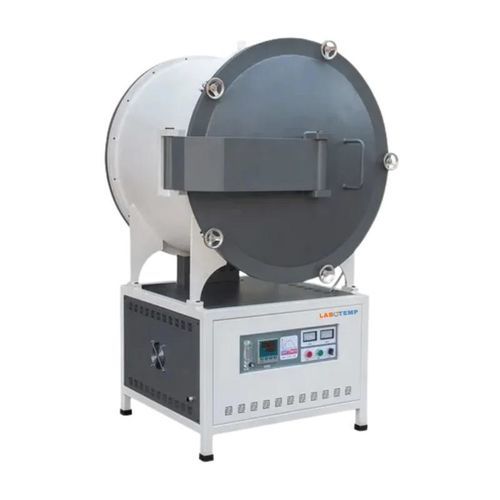

Labotemp Vacuum Furnace FVA-17 is a laboratory-scale vacuum furnace designed for precision vacuum heat treatment, sintering and high-temperature material processing up to 1400 °C (working temperature rated 1350 °C). The furnace features a 45 L chamber with SiC rod heating elements and a Shimaden S-type multi-segment programmable controller. It can operate under high vacuum or inert-gas (Ar/N2) atmospheres and is configurable with pump packages for deep-vacuum processes. Water cooling and an industrial chiller are required for stable high-temperature operation.

Key Selling Points

• High-temperature capability: stable heating up to 1400 °C with 1350 °C working rating.
• Accurate thermal control: Shimaden multi-segment programmable controller with S-type thermocouple for repeatable cycles.
• Deep-vacuum readiness: supports high-vacuum configurations with digital gauge monitoring to 10⁻⁴ Torr.
• Industrial-grade heating: SiC rod elements and compact 45 L chamber suitable for R&D and lab production.

Features

• High-temperature vacuum processing to 1400 °C.
• Optional 3-stage pump package (diffusion + rotary backing + roots) for deep-vacuum performance.
• Programmable ramp/soak profiles via Shimaden controller.
• Compatible with inert atmospheres (Argon, Nitrogen).
• Water-cooling requirement for body, seals and diffusion pump protection.
• Digital vacuum gauge for real-time monitoring down to 10⁻⁴ Torr.
• Optional RS485/USB PC data-logging for process traceability.

Applications

• Vacuum brazing
• Ceramic sintering
• Metal heat treatment and annealing
• Powder metallurgy
• Crystal growth and material research
• Degassing and pre-treatment
• R&D and pilot production

Optional Accessories

• High-vacuum pump packages (e.g., KT400 diffusion pump, BSV90 rotary backing pump, BSJ150 roots pump).
• Industrial water chiller (recommended ≥ 3.3 kW, flow ≥ 1.5 m³/h) for diffusion pump and furnace cooling.
• RS485/USB communication module and Shimaden PC data-logging software.
• Spare SiC heating elements and vacuum sealing kits.

Specifications
Model No.: FVA-17
Volume (L): 45
Max Temp (°C): 1400
Working Temp (°C): 1350
Power Supply: 380V, 3-Phase, 50/60 Hz
Power: 14 kW
Chamber Size (mm): 300 × 500 × 300
Heating Element: SiC Rod
Thermocouple Type: S-type
Temperature Controller: Shimaden (Japan), multi-segment programmable, S-type thermocouple
Cooling Requirement: Yes (Water Cooling)
Cooling Requirement (detail): Industrial chiller ≥ 3.3 kW, flow ≥ 1.5 m³/h
Vacuum Level (High-Vacuum Configuration): 4.5 × 10⁻⁴ Torr (with KT400 diffusion pump + rotary + roots pump)
Vacuum Gauge: Digital gauge (measures to 10⁻⁴ Torr)
Atmosphere Modes: High Vacuum / Inert Gas (Ar / N₂)
Control Interface: Manual valve control (automatic optional)
RS485 / USB Communication: Optional (for PC software & data logging)
