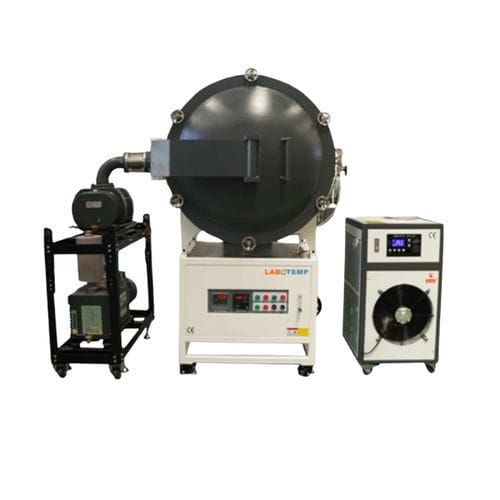

Vacuum furnace FVA-16

brazingannealingheat treatment

Overview
Labotemp Vacuum Furnace FVA-16 is a laboratory vacuum furnace engineered for ultra-high-temperature thermal processing and pilot-scale R&D. It features a 45 L chamber (300×500×300 mm), 1700°C maximum temperature and 1600°C continuous working temperature. The unit supports vacuum heat treatment, vacuum annealing, high-temperature sintering, vacuum brazing and controlled-atmosphere processing for ceramics, metal alloys, composites and powder-metallurgy materials.

Key design & components
MoSi₂ rod heating elements provide fast ramp rates, high thermal efficiency and uniform temperature distribution under repeated ultra-high-temperature cycles. Temperature measurement uses a B-type platinum‑rhodium thermocouple. Precise profile control is handled by Yudian or Shimaden programmable controllers. The furnace can operate under vacuum or inert gas to minimize oxidation and contamination. Water‑cooling protection is provided and the unit is compatible with external chillers for extended high‑temperature operation.

Why choose Labotemp Vacuum Furnace FVA-16?

• Ultra-high temperature capability: up to 1700°C, 1600°C continuous working temperature.
• Large 45 L chamber: supports oversized samples, multiple batches and pilot production.
• Precision control: B-type thermocouple with Yudian / Shimaden controllers for repeatable profiles.
• Industrial safety: water-cooling protection and chiller compatibility for stable vacuum operation.

Features

• Chiller compatible for extended runs.
• Designed for extreme thermal processing up to 1700°C.
• MoSi₂ rod heating elements for rapid heating and long service life.
• B-type programmable control option (Yudian / Shimaden) for accurate temperature management.
• Large chamber 300×500×300 mm suitable for pilot-scale and R&D yields.
• Water-cooling protection system for safe vacuum operation at ultra-high temperatures.
• Power configuration: 380V / 14 kW for high heating rates.

Applications

• Advanced ceramic sintering and high-temperature alloy processing.
• Crystal growth, powder metallurgy and composite material development.
• Prototype production, electronic component treatment and critical material testing.
• Aerospace, semiconductor fabrication, defense laboratories and high-performance engineering sectors.

Technical specifications

• Model: FVA-16
• Chamber volume: 45 L
• Chamber size (W×D×H): 300×500×300 mm
• Maximum temperature: 1700°C
• Continuous working temperature: 1600°C
• Heating element: MoSi₂ rod
• Thermocouple: B-type (platinum‑rhodium)
• Controller: Yudian / Shimaden (programmable)
• Power supply: 380V / 14 kW
• Cooling requirement: water-cooling required; compatible with external chiller
• Supported processes: vacuum heat treatment, vacuum annealing, high-temperature sintering, vacuum brazing, controlled-atmosphere processing
