Telemonitoring module EMB-2121

wirelessBluetooth

Product overview

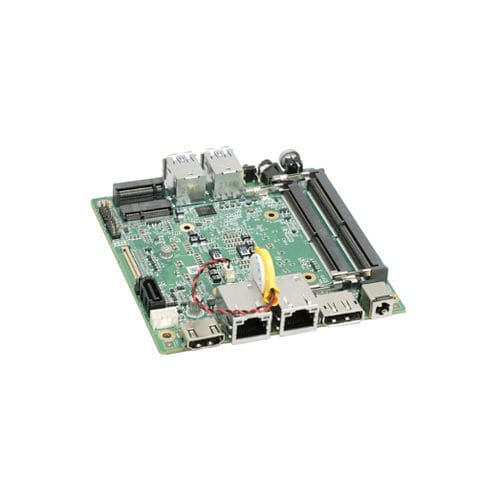

EMB-2121 is a 10×10 industrial motherboard based on Intel 12th/13th Gen Alder Lake-P / Raptor Lake-P platforms. With a 100×100 mm ultra-compact form factor and dual-channel DDR5 memory support, it offers HDMI2.0 + DP++ + eDP triple display output and M.2 NVMe expansion, delivering high-performance compact compute for embedded and edge industrial applications.

Main features

• Supports Intel 12th/13th Gen Alder Lake-P / Raptor Lake-P processors (i3-1220P / i5-1250P / i7-1270P), 28W TDP.
• 10×10 motherboard form factor (100×100 mm) for space-constrained installations.
• Dual-channel DDR5-4800, up to 64 GB via 2× SO-DIMM.
• 2× RJ45 LAN ports (Intel i211 Gigabit), dual-network capability.
• Triple display outputs: 1× HDMI2.0 + 1× DP++ + 1× eDP, supporting high resolution and refresh rates.
• Expansion: 1× M.2 M-Key 2280 (NVMe PCIe 4.0 x4 / SATA3.0) + 1× M.2 E-Key (Wi‑Fi/Bluetooth) + 1× SATA3.0.
• Wide temperature design: operating -20 °C to 60 °C; storage -40 °C to 85 °C. Supports Windows and Linux.

Product description
The EMB-2121 supports dual-channel DDR5-4800 up to 64 GB via two SO-DIMM slots, providing ample memory bandwidth for data-intensive edge workloads. Display capability is a key strength: 1× HDMI2.0 and 1× DP++ support up to 4096×2160@60Hz, while eDP supports up to 4096×2160@120Hz HDR for high-refresh or high-density panel use. Storage is flexible with 1× M.2 M-Key 2280 supporting NVMe PCIe 4.0 x4 or SATA3.0, plus 1× M.2 E-Key for wireless modules and an additional 1× SATA3.0 (2-pin 5V). Networking includes 2× RJ45 with Intel i211 controllers (10/100/1000 Mbps). I/O includes rear 4× USB3.2 and 2× USB2.0 via pin header. Serial interfaces: 1× RS232/485/422 (2.0 mm) plus front-panel serial. Audio: combined audio jack with ALC897. System controls include Power and Reset buttons, optional TPM 2.0, and watchdog. Power input DC 12–19 V, 150 W via DC jack adapter. Designed for industrial edge computing, embedded control, digital signage and machine vision in compact deployments.

Applications

• Industrial edge computing
• Embedded control
• Digital signage
• Machine vision

Technical specifications

• Model: EMB-2121
• CPU: Intel 12th/13th Gen Alder Lake-P / Raptor Lake-P — i3-1220P (10 cores/12 threads, 3.3 GHz, 12 MB cache, 28 W); i5-1250P (12 cores/16 threads, 3.3 GHz, 12 MB cache, 28 W); i7-1270P (12 cores/16 threads, 3.5 GHz, 18 MB cache, 28 W)
• BIOS: AMI EFI with 32 MB SPI BIOS and CMOS backup
• Memory: DDR5-4800, 2× SO-DIMM, dual-channel, up to 64 GB
• PCIe: 1× PEG x4 (PCIe Gen4)
• M.2 slots: 1× M.2 M-Key 2280 (NVMe PCIe 4.0 x4 or SATA3.0); 1× M.2 E-Key (PCIe + USB2.0 for Wi‑Fi/Bluetooth)
• SATA: 1× SATA3.0 (2-pin 5 V)
• Display outputs: 1× HDMI2.0 (rear); 1× DP++ (rear); 1× eDP (rear/header). HDMI2.0/DP up to 4096×2160@60Hz; eDP up to 4096×2160@120Hz HDR
• USB: Rear 4× USB3.2; Header 2× USB2.0 (2.0 mm 2×5 pin)
• Serial: 1× RS232/485/422 (2.0 mm) plus front-panel serial
• LAN: 2× RJ45 (Intel i211, 10/100/1000 Mbps)
• Audio: Combined audio jack (ALC897)
• Buttons: 1× Power, 1× Reset
• Security: TPM 2.0 (optional)
• Watchdog: Supported
• Power input: DC 12–19 V, 150 W
• Power connector: 1× DC jack (adapter-powered)
• Operating temperature: -20 °C to 60 °C
• Storage temperature: -40 °C to 85 °C
• Board size: 10×10 (100×100 mm)
• PCB color: Green
• OS support: Windows / Linux
