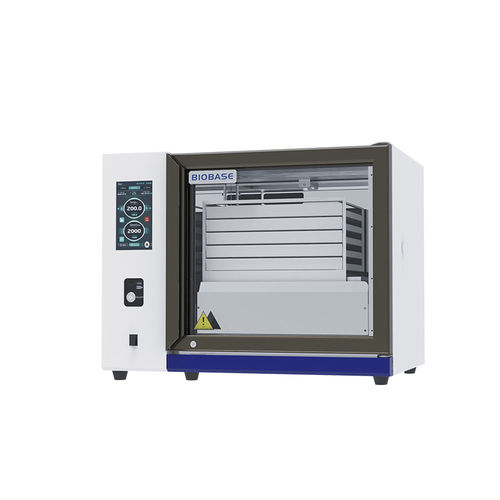

Forced air laboratory incubator BJPX-SP series

for hospitalsfor healthcare facilitiesfor scientific research

Product overview / Application:
The platelet incubator is designed for storage, controlled incubation and preparation of platelet products. It is intended for use in blood transfusion departments, blood centers, donation sites and clinical or research laboratories to ensure blood safety and consistent experimental conditions.

Key features:

• Exterior: cold-plate hot-spray coating with flat surface; interior: mirror-finish 304 stainless steel with laser welding for easy cleaning and corrosion resistance.
• Injection-moulded trays to secure platelet bags and ensure stable placement during oscillation.
• Three-dimensional air duct with circulating fan for forced-air temperature circulation and improved internal uniformity.
• AC servo motor providing smooth oscillation with low noise and long service life.
• Double-layer electrically heated tempered glass door for thermal insulation and anti-fog observation.
• Casters and leveling feet for mobility and stable installation (not applicable to BJPX-SP05).
• Real-time digital signal monitoring and microprocessor PID control for fast, accurate regulation and alarms.

Technical parameters:
Models: BJPX-SP05 | BJPX-SP08 | BJPX-SP10 | BJPX-SP18 | BJPX-SP36
Display: 7-inch LCD touchscreen (all models)
Temperature control range: 22.0 ± 2.0 ℃
Temperature display resolution: 0.1 ℃
Temperature fluctuation: ±1.0 ℃
Temperature uniformity: ±2.0 ℃
Oscillation mode: continuous left-right reciprocation with horizontal oscillation
Refrigerant: R134a (CFC-free)
Defrost: automatic
Alarms: high/low temperature, oscillation device (motor) failure, long-door-open alarm
Oscillation frequency: 60 ± 5 times/min
Oscillation amplitude: 50 ± 5 mm
Ambient temperature: 5 ~ 35 ℃
Bag capacity (200 ml): BJPX-SP05: 1–10; BJPX-SP08: 1–16; BJPX-SP10: 1–20; BJPX-SP18: 1–36; BJPX-SP36: 1–72
Power consumption: BJPX-SP05: 1200 W; BJPX-SP08: 950 W; BJPX-SP10: 1300 W; BJPX-SP18: 950 W; BJPX-SP36: 1500 W
Power supply: AC220V, 50/60Hz (standard); AC110V, 50/60Hz (optional with external transformer)
Internal dimensions (W×D×H): BJPX-SP05: 500×310×460 mm; BJPX-SP08: 485×310×569 mm; BJPX-SP10: 498×450×578 mm; BJPX-SP18: 500×337×970 mm; BJPX-SP36: 1018×343×895 mm
External dimensions (W×D×H) and weights vary by model (see technical table).

Accessories & options:

• Standard accessories: USB interface, LED lamp, UV lamp.
• Optional accessory: printer.
• Voltage/configuration: 220 V standard; 110 V optional (specify at order).

Ordering & support:
Brand: BIOBASE
Product origin: CHINA
Delivery time: within 7 days (subject to model and stock)
Supply: factory direct. For custom voltage, spare parts or service contracts, contact your local representative or BIOBASE support.
