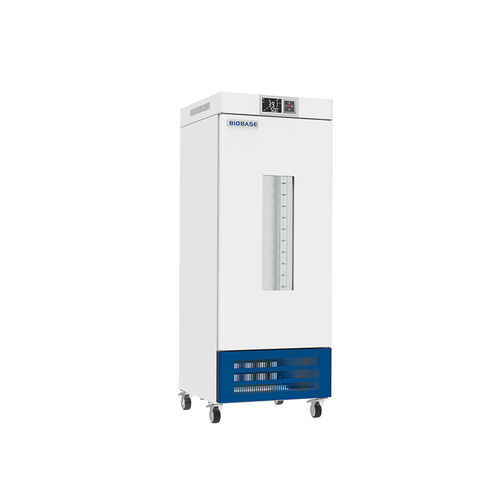

Forced convection laboratory incubator BJPX-I series

forced airfor scientific researchfor microbiology

Introduction:
This incubator is suitable for environmental protection, agriculture and livestock, aquaculture, scientific research, universities and production departments. It is designed for water analysis and BOD determination, cultivation and preservation of bacteria, molds and microorganisms, plant cultivation and breeding experiments. Temperature settings between 20 and 37℃ help prevent crystallization of mannitol solution.

Features:

• LCD display with real-time and set temperature readout.
• PID microcomputer temperature control with timer (0–9999 min/h), parameter memory and automatic recovery.
• PT100 temperature sensor.
• Stainless steel direct-heating tube.
• High-quality stainless steel inner chamber with half-round corners and hollow glass observation window.
• High-temperature alarm, independent overheat protection and over-current protection.
• Interior lighting and standard BOD socket; standard splashproof multifunction socket.
• Dedicated refrigeration circuit with fan-forced convection for improved temperature uniformity.

Technical parameters:
Model: BJPX-I-80 | BJPX-I-100 | BJPX-I-150 | BJPX-I-200 | BJPX-I-250 | BJPX-I-300 | BJPX-I-400
Capacity: 80L | 100L | 150L | 200L | 250L | 300L | 400L
Temperature control: PT100 sensor + PID microcomputer; range 0~65℃; display resolution 0.1℃
Temperature fluctuation: Heating ±0.5℃; Refrigeration ±1℃; Uniformity ±2℃
Timer: 0~9999 min/h; parameter memory and auto-recovery
Refrigerant: BJPX-I-80: R134a/230g; BJPX-I-100: R134a/250g; BJPX-I-150: R134a/270g; BJPX-I-200: R134a/320g; BJPX-I-250: R404a/350g; BJPX-I-300: R404a/350g; BJPX-I-400: R404a/350g
Disinfection: UV disinfection device optional
Display: LCD
Power supply: AC220V, 50Hz (standard); 110V, 60Hz optional (external transformer)
Rated power: varies by model (approx. 1000W / 1200W / 1400W groups)
Shelves: standard 2 shelves (dimensions vary by model; optional configurations available)
Standard accessories: 2 shelves, splashproof multifunction socket ×1, BOD waterproof socket
Optional accessories: RS485 interface, USB interface, printer, UV disinfection, tempered glass inner door, test port
Internal size (W×D×H): BJPX-I-80: 400×370×560mm; BJPX-I-100: 400×370×680mm; BJPX-I-150: 450×420×850mm; BJPX-I-200: 450×450×1000mm; BJPX-I-250: 480×490×1070mm; BJPX-I-300: 520×500×1170mm; BJPX-I-400: 580×540×1270mm
External size (W×D×H): BJPX-I-80: 540×580×1100mm; BJPX-I-100: 540×580×1220mm; BJPX-I-150: 590×630×1380mm; BJPX-I-200: 590×660×1530mm; BJPX-I-250: 620×700×1600mm; BJPX-I-300: 660×700×1700mm; BJPX-I-400: 720×760×1800mm
Package size (W×D×H): BJPX-I-80: 680×730×1290mm; BJPX-I-100: 680×730×1410mm; BJPX-I-150: 730×770×1570mm; BJPX-I-200: 730×800×1720mm; BJPX-I-250: 760×850×1790mm; BJPX-I-300: 800×850×1890mm; BJPX-I-400: 860×900×1990mm
Net weight: BJPX-I-80: 65kg; BJPX-I-100: 70kg; BJPX-I-150: 90kg; BJPX-I-200: 95kg; BJPX-I-250: 105kg; BJPX-I-300: 115kg; BJPX-I-400: 135kg
Gross weight: BJPX-I-80: 80kg; BJPX-I-100: 85kg; BJPX-I-150: 120kg; BJPX-I-200: 138kg; BJPX-I-250: 147kg; BJPX-I-300: 157kg; BJPX-I-400: 170kg
Remarks: Performance parameters tested under no-load condition at ambient 20℃, 50%RH. Not for long-term refrigerated storage and not for culture of human-origin samples.

Specifications:

• Series: BJPX-I (BJPX-I-80 to BJPX-I-400).
• Capacity range 80–400L; temperature range 0–65℃; resolution 0.1℃; PID control with PT100 sensor.
• Temperature stability: heating ±0.5℃, cooling ±1℃; uniformity ±2℃.
• Timer function 0–9999 min/h with parameter memory and auto-recovery.
• Safety: high-temperature alarm, overheat protection, over-current protection.
• Options: RS485/USB/printer/UV/tempered glass inner door/test port.
