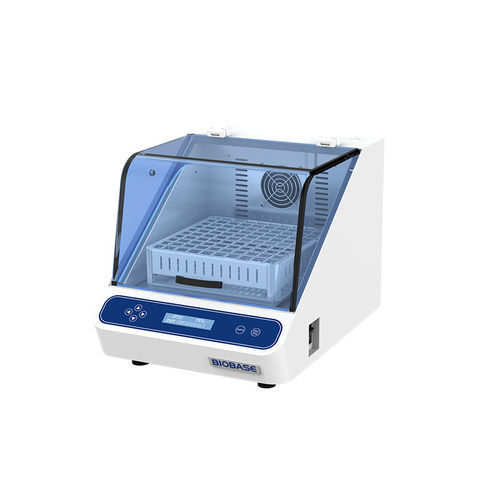

Orbital laboratory shaker BK-YC35

digitalfor cell culturefor microbiology

Overview
The constant temperature incubator shaker is a compact benchtop unit that combines thermostatic incubation and orbital shaking. It supports secure placement and fixation of test tubes, conical flasks, culture dishes and microplates, and is suitable for biotechnology, microbiology and medical analysis laboratories.

Features

• User-friendly man–machine interface with real-time display of operating and set parameters for easy monitoring.
• DC brushless motor for low noise, minimal interference and maintenance-free operation.
• Automatic pause function when the cover is opened for enhanced safety.
• Temperature calibration function included for reliable temperature control.
• Built-in software and hardware dual over-temperature protection.

Technical Parameters
Model | BK-YC35 | BK-CIS30
Temperature setting range | 0~60℃ | 0~60℃
Temperature control range | RT+5~60℃ | RT+5~60℃
Temperature control accuracy | ≤±0.5℃ (at 37℃) | ≤±0.5℃ (at 37℃)
Timing range | 1min~99h99min/∞ | 1min~99h59min/∞
Module temperature uniformity | ≤±0.5℃ (at 37℃) | ≤±0.5℃ (at 37℃)
Display precision | 0.1℃ | 0.1℃
Rotation speed range | 50~300 rpm | 50~250 rpm
Horizontal amplitude | 20 mm | 20 mm
Heating rate | ≤15 min (25→60℃) | ≤20 min (25→60℃)
Platform size | 230×230 mm | 350×350 mm
Power | 350 W | 600 W
Power supply | AC220/110V, 50/60Hz | AC220/110V, 50/60Hz
Packing size (L×W×H) | 410×510×460 mm | 760×620×680 mm
Gross weight | 30 kg | 58 kg

Modules for BK-YC35

• YC35-P01 — Universal spring plate: universal tray (standard)
• YC35-P02 — Tray for 5×250 ml conical flasks: 250 ml flask clamp
• YC35-P03 — Tray for 9×100 ml conical flasks: 100 ml flask clamp
• YC35-P04 — Tray for 10×50 ml tubes: 50 ml tube
• YC35-P05 — Tray for 18×15 ml tubes: 15 ml tube
• YC35-P06 — 96-well plates tray: ELISA plate or deep well plate
• YC35-P07 — Culture dish tray: universal tray

Modules for BK-CIS30

• CIS30-T1 — Tray for 9×250 ml conical flasks: 250 ml conical flask
• CIS30-T2 — Tray for 25×100 ml conical flasks: 100 ml conical flask
• CIS30-T3 — Universal tray: fits 16 culture dishes
• CIS30-T4 — Universal tray (spring clip): subject to actual samples (standard)

Specifications

• Brand: BIOBASE
• Product origin: CHINA
• Integrated functions: thermostatic incubation + orbital shaking
• Temperature control with calibration and dual over-temperature protection (hardware & software)
• DC brushless motor, adjustable speed, 20 mm horizontal amplitude
• Interchangeable platforms and multiple trays for flasks, tubes, ELISA plates and culture dishes
• Supply: AC220/110V, 50/60Hz; Power: 350 W (BK-YC35) / 600 W (BK-CIS30)
