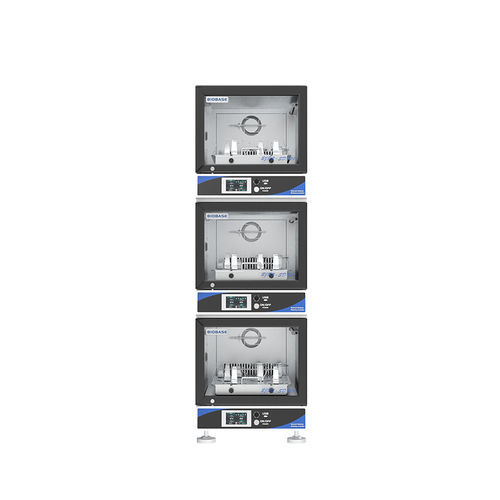

Forced convection laboratory incubator BJPX-SDT10

for scientific researchfor microbiologyfor cell cultures

Introduction:
The Stacked Large Capacity Shaking Incubator is a high-performance device designed for large-scale cell culture, microbial fermentation and other temperature-sensitive shaking applications. Its stacked configuration optimizes laboratory floor space and increases throughput for simultaneous experiments.

Product details:

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model variants: BJPX-SDT10, BJPX-SDT20

Features:

• Brushless DC motor for low noise and durable operation.
• 5-inch touch screen with clear and intuitive interface.
• Run parameter encryption lock and parameter memory function.
• Power failure recovery function.
• Automatic cut-off on motor overheat or abnormal over-temperature.
• USB data export for data traceability.
• Ultraviolet (UV) disinfection function.
• Standard LED internal light that turns on automatically when the door is opened.

Technical parameters:
Model: BJPX-SDT10 | BJPX-SDT20
Capacity: 80 L (per unit)
Temperature sensor: PT100
Temperature range: RT+5 ~ 60℃ (BJPX-SDT10); 4 ~ 60℃ (BJPX-SDT20)
Temperature fluctuation: ≤±0.5℃
Temperature uniformity: ≤±1℃ (at 37℃)
Temperature precision: 0.1℃
Timing range: 0–999 min
Controller: PID
Display: 5-inch touch screen
Circulation mode: Forced convection
Shaking mode: Rotary (orbital) shaking
Drive mode: Single-axis balanced drive
Vibration amplitude: Φ26 mm
Rotating speed: 30–300 r/min
Rotating accuracy: ±1 r/min
Shaking plate size: 420×400 mm (1 plate standard)
Max. capacity examples: 250 ml×16; 500 ml×9; 1000 ml×9; 2000 ml×5 (flask clamps); tube rack×2; 96-well plate×8
Lighting: LED lamp ×1
Sterilization: UV lamp ×1
Refrigerant: / R290 (depending on model)
Ambient temp.: 15–35℃
Internal material: 304 stainless steel
External material: Cold-rolled steel sheet
Safety functions: High/low temperature protection, abnormal shutdown, motor failure detection, door-not-closed alarm; audible and visual alarm
Power consumption: 1000 W (BJPX-SDT10) | 1600 W (BJPX-SDT20)
Power supply: AC 220 V, 50/60 Hz (standard); 110 V 50/60 Hz optional (external transformer)
Internal size (W×D×H): 495×455×370 mm (per unit)
External size (W×D×H): 580×830×600 mm (per unit)
Package size (W×D×H): 705×975×865 mm (per unit)
Net weight: 138 kg | 158 kg (per unit)
Gross weight: 168 kg | 188 kg (per unit)

Characteristics / specifications:

• Series: BJPX-SDT (models BJPX-SDT10, BJPX-SDT20)
• Useful volume per unit: 80 L
• Temperature control: PID, accuracy 0.1℃, fluctuation ≤±0.5℃, uniformity ≤±1℃ (37℃)
• Shaking: Rotary orbital shaking, amplitude Φ26 mm, 30–300 r/min, ±1 r/min accuracy
• User interface: 5-inch touch screen; parameter encryption and memory
• Data: USB export for traceability
• Safety & sterilization: UV sterilization lamp, LED internal lighting, alarm systems
• Materials: Internal 304 stainless steel; external cold-rolled steel
• Power: Standard AC220V 50/60Hz (110V optional); consumption 1000–1600 W
• Dimensions & weights: see technical parameters above
