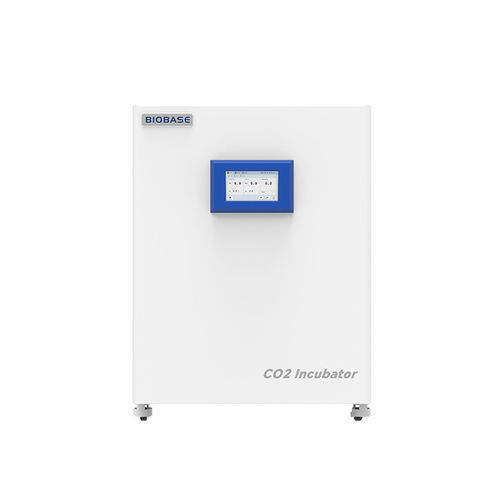

CO2 laboratory incubator BJPX-C series

for scientific researchfor cell culturesbenchtop

Introduction
CO2 incubators provide controlled temperature, CO2 atmosphere and contamination control required for reliable cell culture incubation in research and production environments. The BIOBASE BJPX-C series covers capacities from 50 L to 300 L and is intended for laboratory and light production use.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model(s): BJPX-C50D, BJPX-C80D, BJPX-C160D, BJPX-C180D, BJPX-C220D, BJPX-C300D

Key features

• IR infrared CO2 sensor using dual-channel dual-filter technology with calibration certificate.
• 304 mirror-finish stainless steel inner tank with full-radius corners for easy cleaning.
• Double heating modules with six-side heating and silicone rubber heating wire wrapped in aluminum foil for rapid, uniform temperature rise.
• HEPA filtration (99.97%) plus CO2 gas filter for internal air quality control.
• Safety protections: leakage current and over-voltage protection; alarms for over-temperature, under-temperature, over-concentration and under-concentration.
• HermeSEAL® encapsulated IR assembly for resistance to high temperature, humidity and corrosive environments.
• Sensor design prevents condensation at power-on to ensure stable CO2 measurement.

Technical parameters
Model: BJPX-C50D | BJPX-C80D | BJPX-C160D | BJPX-C180D | BJPX-C220D | BJPX-C300D
Type: Dry-heat series, air jacket
Sterilization: 180℃ dry heat sterilization
Capacity: 50 L | 80 L | 160 L | 180 L | 220 L | 300 L
Temperature sensor: PT100
Temperature range: RT+5 ~ 60℃
Temperature fluctuation: ±0.5℃ (at 37℃: ±0.3℃)
Temperature uniformity: ±1.0℃ (at 37℃: ±0.5℃)
Temperature resolution: 0.1℃
Timing: 0 ~ 999 h or continuous
Display: 7-inch touch screen
CO2 control: IR sensor, resolution 0.1 vol%, range 0 ~ 20 vol%, uniformity 0.2 vol%
Ambient conditions: 18 ~ 30℃ (recommended 25±2℃), humidity ≤80%
Power supply: AC 220V 50/60Hz (standard); 110V optional (external transformer)
Power consumption: ~1400W / ~1700W / ~2400W (model dependent)
Shelves: 2, adjustable
Standard accessories: shelves, USB interface, CO2 relief valve, water tank, CO2 gas filter
Optional accessory: three-way connector
Internal / external / package sizes and net/gross weights: see model-specific data

Specifications

• Model series: BJPX-C (BJPX-C50D to BJPX-C300D)
• Temperature control precision: 0.1℃; temperature stability and uniformity as above
• CO2 sensing: calibrated IR sensor with anti-condensation design
• Filtration: HEPA 99.97% and CO2 gas filter
• Construction: 304 mirror stainless steel interior, rounded corners
• Safety: multi-condition alarms and electrical protections
• Use cases: laboratory incubation, cell culture workflows and R&D environments
