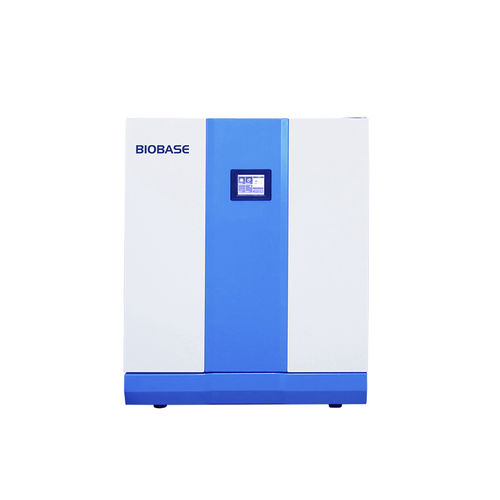

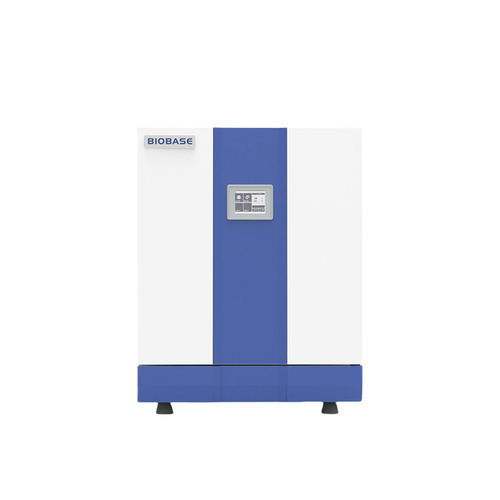

Scientific research laboratory incubator BJPX-H series

for biologyeducationagricultural

Introduction: The constant temperature incubator provides stable temperature control and can accurately adjust the temperature within a certain temperature range to meet different experimental needs.

Applications:

• Storing strains and biological cultivation in laboratories
• Scientific research institutions
• Colleges and universities
• Biology and agriculture research

Features:

• Large LCD touch screen
• Stainless steel chamber, easy to clean
• D type: with inner glass door
• G type: with viewing window
• Multi-stage temperature calibration for smaller temperature deviation across ranges
• Anti-slip partition design, adjustable spacing
• Standard test port on the side of the chamber for detection and calibration
• Over-temperature alarm, independent limit temperature alarm system, leakage current and over-voltage protector

Technical Parameters (table):
Model | BJPX-H54BK(D/G) | BJPX-H88BK(D/G) | BJPX-H160BK(D/G) | BJPX-H200BK(G) | BJPX-H270BK(G)
Capacity | 54L | 88L | 160L | 200L | 270L
Temperature Sensor | PT100 (all models)
Temperature Range | RT+5 ~ 85℃
Temperature Fluctuation | ±1℃ (@37℃)
Temperature Uniformity | ±2℃ (@37℃)
Temperature Precision | 0.1℃
Timing Range | 0 ~ 999 h or continuous
Display | LCD touch screen
Power Supply | AC220V, 50/60Hz (Standard); 110V, 50/60Hz (Optional) (G type: external transformer)
Power Consumption | 345W (smaller models) / 495W (mid) / 645W (larger models) as listed per model
Shelves | 2 pcs (standard)
Standard Accessories | Shelf, test port
Optional Accessories | Footmaster, shelf, UV lamp
Internal Size (W*D*H) | 395*364*395mm (54L) | 500*360*500mm (88L) | 558*518*600mm (160L) | 598*548*638mm (200L) | 665*600*720mm (270L)
External Size (W*D*H) | D type / G type dimensions provided per model (see detailed spec rows)
Package Size (W*D*H) | D type / G type dimensions provided per model (see detailed spec rows)
Gross Weight | D/G type weights provided per model (see detailed spec rows)

caractéristiques / spécifications techniques:

• Model series: BJPX-H series (multiple variants: BJPX-H54BK, H88BK, H160BK, H200BK, H270BK)
• Temperature range: RT+5 to 85℃
• Temperature fluctuation: ±1℃ (@37℃)
• Temperature uniformity: ±2℃ (@37℃)
• Temperature resolution/precision: 0.1℃
• Display: Large LCD touch screen
• Sensors: PT100 temperature sensor
• Capacity options: 54L / 88L / 160L / 200L / 270L
• Construction: Stainless steel inner chamber; D type (inner glass door) or G type (viewing window)
• Standard accessories: shelf and test port; optional: footmaster, additional shelf, UV lamp
• Timing: 0–999 h or continuous
• Power supply: AC220V 50/60Hz standard; 110V optional (G type uses external transformer)
• Over-temperature and safety protections: independent limit temperature alarm, leakage current and over-voltage protector
