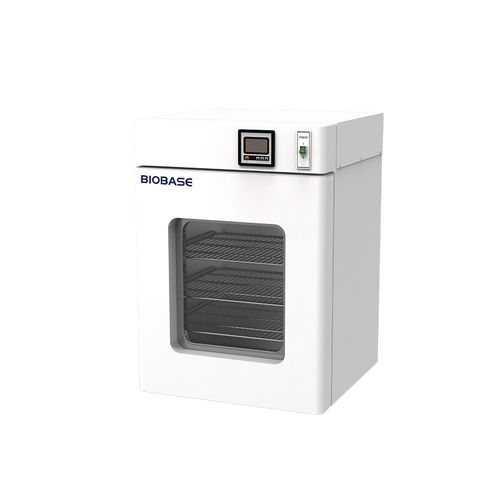

Scientific research laboratory incubator BJPX-SDW series

for sample storage2 doorsUV

Introduction:
The BJPX-HIV constant-temperature incubator provides stable and precise temperature control for biological cultivation and sample storage. It is designed for laboratory use where controlled thermal conditions are required for strain preservation, culture incubation and routine testing.

Product information:

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BJPX-H50IV, BJPX-H80IV, BJPX-H160IV, BJPX-H270IV

Applications:
Suitable for laboratories, research institutes, universities and agricultural/biological facilities for storing strains, biological cultivation, incubation of samples and other research applications requiring constant temperature control.

Features:

• Microcomputer-based smart temperature controller with parameter memory.
• LCD shows set temperature and chamber temperature; parameter memory protects against power failures and data loss; power-failure recovery function available.
• Over-temperature protection, sensor-failure alarm, leakage and over-current protection; audible and visual alarms; timing function.
• Separate temperature limiting and alarm system; automatic suspension when exceeding set limits (optional).
• UV sterilization system (optional).
• RS-485 communication port for connection to printer or PC for temperature records (optional).
• Double/inner door option for improved insulation (optional).

Technical Parameters:
Model: BJPX-H50IV | BJPX-H80IV | BJPX-H160IV | BJPX-H270IV
Capacity: 50 L | 80 L | 160 L | 270 L
Temperature range: RT+5 ~ 65℃
Temperature fluctuation: ±0.5℃
Temperature uniformity: ±1℃ (at 37℃)
Temperature precision: 0.1℃
Time range: 1 ~ 9999 min
Display: LCD
Power supply: AC220V, 50/60Hz or 110V, 50/60Hz (standard options)
Power consumption: 250 W | 300 W | 400 W | 600 W
Shelves: 2 pcs (standard)
Standard accessories: shelf(s)
Optional accessories: separate temperature limit/alarm system; UV sterilizer; RS-485 port; inner/double door
Internal size (W*D*H): 350*360*410 mm | 400*400*500 mm | 500*500*650 mm | 600*600*750 mm
External size (W*D*H): 450*520*680 mm | 500*560*760 mm | 600*620*910 mm | 720*690*1020 mm
Packing size (W*D*H): 550*620*780 mm | 600*660*860 mm | 700*720*1010 mm | 820*790*1120 mm
Gross weight: 40 kg | 47 kg | 70 kg | 90 kg

Characteristics / specifications:

• Series / Model name: BJPX-HIV (variants: BJPX-H50IV, BJPX-H80IV, BJPX-H160IV, BJPX-H270IV)
• Operating temperature range: RT+5 to 65℃
• Temperature control accuracy: 0.1℃; fluctuation ±0.5℃; uniformity ±1℃ at 37℃
• Time control: 1–9999 minutes
• Controller: microcomputer-based PID with LCD and parameter memory
• Power options: AC220V 50/60Hz or 110V 50/60Hz
• Standard configuration: 2 shelves
• Optional features: separate temperature limit/alarm, UV sterilization, RS-485 communication, inner/double door
• Consumption and dimensions vary by model (see Technical Parameters)
