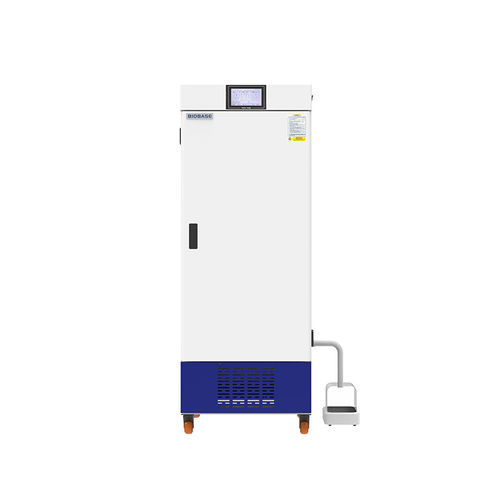

Climate chamber BJPX-E series

humiditytemperaturelight

Overview
Climate incubators are precision-controlled devices used to simulate environmental conditions (light intensity, temperature, humidity) for agricultural breeding, ecological research, biomedicine and related fields. They reproduce day/night variations and provide microprocessor control for defined experimental protocols.

Key information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BJPX-E280, BJPX-E380, BJPX-E460

Features

• Mirror-finished stainless steel inner chamber with rounded corners; shelves and light panels removable without tools for easy sterilization and cleaning.
• Stores up to 30 programs; each program timing range from 1 hour to 99 hours 59 minutes.
• LED cold light source: uniform illumination with service life >50,000 hours and high photoelectric conversion efficiency.
• Microprocessor control of temperature, humidity and light intensity; capable of simulating diurnal temperature and humidity variations and multidirectional natural light sources.
• User-defined parameters are automatically saved during power failure and the system resumes according to the original program after power restoration.
• Automatic circulation fan speed control to prevent damage to seedlings from excessive airflow.
• Independent overtemperature alarm system that interrupts operation when the set temperature limit is exceeded.
• Humidification via external ultrasonic humidifier.

Technical Parameters
Model: BJPX-E280 | BJPX-E380 | BJPX-E460
Capacity: 280L | 380L | 460L
Display: LCD touch screen (all models)
Temperature sensor: PT100 (all models)
Temperature range: With illumination: 5~65℃; Without illumination: 0~65℃ (all models)
Temperature fluctuation: Heating: ±0.5℃; Cooling: ±1℃ (all models)
Temperature uniformity: ±2℃ (all models)
Temperature precision: 0.1℃ (all models)
Timing range: 0~99h or continuous (all models)
Humidity range: 50~95%RH (all models)
Humidity control accuracy: ±1%RH (all models)
Humidity control fluctuation: ±3~7%RH (all models)
Light: 0~5000 Lux, customizable (top lighting, stepless adjustable)
Working environment: Temperature 0~30°C; Humidity below 85%RH
Power supply: AC 220V, 50/60Hz (standard); 110V, 50/60Hz (optional, external transformer)
Power consumption: 820W | 950W | 1050W
Shelves: 2 | 3 | 3 (BJPX-E280 / BJPX-E380 / BJPX-E460)
Standard accessory: Shelf, independent temperature limit alarm system
Optional accessory: RS485, printer, USB, UV lamp, red light source
Internal size (W*D*H): 495*505*1040 mm | 495*525*1280 mm | 615*565*1280 mm
External size (W*D*H): 595*675*1650 mm | 595*675*1920 mm | 715*675*1920 mm
Package size (W*D*H): 660*740*1800 mm | 690*740*2060 mm | 790*740*2060 mm
Net weight: 95 kg | 104 kg | 116 kg
Gross weight: 106 kg | 116 kg | 132 kg

Note: Performance parameters are tested under no-load conditions at ambient temperature 20℃ and ambient humidity 50%RH. Not intended for long-term refrigerated storage or for culture of human-derived samples.

Characteristics / technical specifications

• Series: BJPX-E series (models BJPX-E280, BJPX-E380, BJPX-E460)
• Capacities: 280 L / 380 L / 460 L
• Temperature control: PT100 sensor; range up to 65℃; precision 0.1℃; uniformity ±2℃
• Humidity control: 50~95%RH; accuracy ±1%RH; fluctuation ±3~7%RH; uses external ultrasonic humidifier
• Lighting: LED cold light, 0~5000 Lux, stepless adjustable, >50,000 h lifetime
• Control: LCD touch screen, programmable (30 programs)
• Power supply: AC 220V 50/60Hz standard (110V optional)
• Power consumption: 820W / 950W / 1050W depending on model
• Shelves: removable 2 or 3 depending on model
• Safety: independent overtemperature alarm; automatic save and resume after power failure
• Dimensions and weights provided per model
