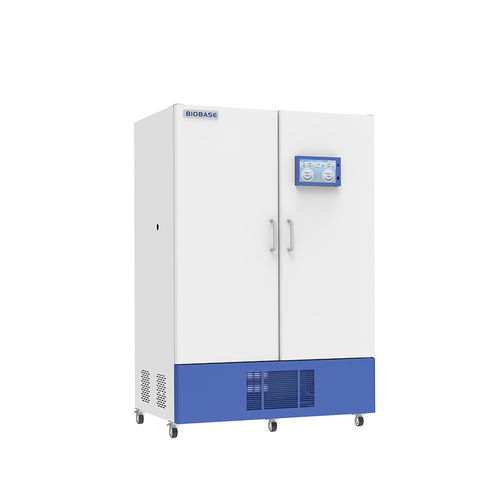

Forced convection laboratory incubator BJPX-HT1000

for scientific researchstainless steelrefrigerated

Introduction
The BJPX-HT1000(PC) constant temperature and humidity incubator provides precise temperature and humidity control for industrial research and biotechnology testing. It simulates a range of environmental conditions for sterility tests, stability inspections of textiles and food, evaluation of raw material properties, packaging tests and product life studies.

Key features

• 7.0-inch color LCD touchscreen with real-time temperature and humidity curve display and operation history query on a single screen.
• Microcomputer PID temperature control supporting fixed-value and segmented programs, with parameter memory and automatic resume after power-on.
• Built-in steam humidification and independent PID humidity control.
• Three-level user permissions (administrator, experimenter, operator) to prevent unauthorized changes.
• Interior liners in high-quality stainless steel with semi-circular design and rounded corners for easy cleaning.
• Refrigeration system with automatic defrost and forced-convection blower to improve temperature uniformity.
• Alarm suite: high-temperature alarm, low-water-level alarm, independent overheat protection and over-current protection.

Technical parameters
Model: BJPX-HT1000(PC)
Capacity: 1000 L
Temperature sensor: PT100
Temperature range: 5–60°C
Temperature fluctuation: ±2.0°C
Temperature uniformity: ±2.0°C (@37°C)
Temperature precision: 0.1°C
Humidity range: 50–95% RH
Humidity fluctuation: ±5–8% RH
Humidity precision: 1.0% RH
Humidification method: Built-in steam humidification system
Refrigerant: R404a
Heating system: Stainless steel heater
Timing range: 0–5999 min
Control type: Microcomputer PID controller
Display: 7.0-inch color LCD touchscreen
Material: External painted cold-rolled steel; internal stainless steel
Power supply: AC220V, 50Hz (standard); 110V, 60Hz (optional)
Power consumption: 1800 W
Shelves: 2 pcs adjustable
Standard interfaces: USB port, LAN interface
Optional accessories: UV lamp, LED lamp, Printer, additional shelves, Automatic water supply system
Internal size (W×D×H): 1200×600×1400 mm
External size (W×D×H): 1343×1046×1985 mm
Package size (W×D×H): 1420×1070×2150 mm
Net weight: 227.5 kg
Gross weight: 300 kg

Standard & optional accessories

• Standard: USB port, LAN interface.
• Optional: UV lamp, LED lamp, Printer, Additional shelves, Automatic water supply system.

Summary specifications

• Model: BJPX-HT1000(PC)
• Capacity: 1000 L
• Temperature: 5–60°C; precision 0.1°C; fluctuation ±2.0°C
• Humidity: 50–95% RH; precision 1.0% RH; fluctuation ±5–8% RH
• Control & display: Microcomputer PID controller; 7.0-inch color LCD touchscreen
• Materials: Painted cold-rolled steel exterior; stainless steel interior
