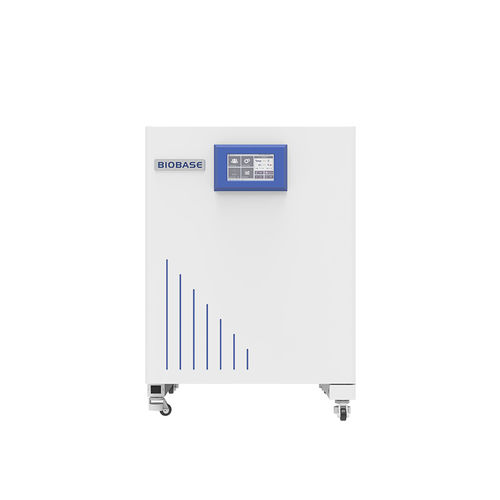

CO2 laboratory incubator BJPX-C series

carbon dioxidefor scientific researchfor cell cultures

Product details
Brand: BIOBASE
Product origin: China
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BJPX-C50II, BJPX-C80II, BJPX-C160II

Introduction
CO2 incubators provide controlled temperature, humidity and CO2 concentration to support cell culture growth and minimize contamination risk. The BJPX-C series is an air‑jacketed solution available in three capacities for laboratory research, QC and small pilot workflows.

Features

• IR infrared CO2 sensor with dual‑channel, dual‑filter technology and calibration certificate.
• Real‑time humidity display and bottom water reservoir design to reduce refill frequency.
• Inner chamber in 304 stainless steel with semicircular corners for easy cleaning.
• Water level alarm, leakage current and over‑voltage protection.
• Multi‑alarm system: over‑temperature, under‑temperature, over‑concentration and under‑concentration of CO2.
• 7‑inch touch screen for parameter control and monitoring.

Technical parameters

• Model: BJPX-C50II / BJPX-C80II / BJPX-C160II
• Type: Air jacketed
• Sterilization: 90℃ moist heat sterilization
• Capacity: 50 L / 80 L / 160 L
• Temperature sensor: PT100; Range: RT+5 ~ 60℃; Fluctuation: ±0.3℃ (@37℃); Uniformity: ±0.5℃ (@37℃); Precision: 0.1℃
• Timing range: 0~999 h or continuous
• Display: 7‑inch touch screen
• CO2 control: IR sensor (calibrated); Range: 0~20 vol%; Uniformity: 0.2 vol%; Resolution: 0.1 vol%
• Ambient conditions: Temperature 5~30℃ (recommended 25±2℃); Humidity ≤80%
• Filter: CO2 gas filter
• Power supply: Standard AC220V 50/60Hz; Optional 110V 50/60Hz (external transformer); Wiring: plug
• Power consumption: 300W (50L) / 650W (80L) / 700W (160L)
• Shelves: 2 adjustable shelves (standard)
• Dimensions (internal W×D×H): 308×392×442 mm / 368×452×517 mm / 468×552×648 mm
• Dimensions (external W×D×H): 551×713×765 mm / 611×773×841 mm / 711×873×991 mm
• Package size (W×D×H): 645×807×902 mm / 725×887×985 mm / 820×1010×1128 mm
• Net weight: 60 kg / 72 kg / 95 kg; Gross weight: 85 kg / 93 kg / 120 kg

Standard and optional accessories

• Standard: shelves, USB interface, CO2 relief valve, CO2 gas filter
• Optional: water pump, three‑way connector
