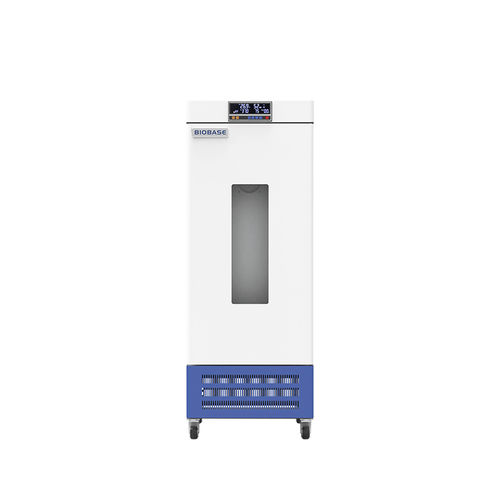

Forced convection laboratory incubator BJPX-MN

forced airfor scientific researchfor microbiology

Overview
Series BJPX‑MN mould incubators for laboratory and research use. Brand: BIOBASE. Product origin: CHINA. Delivery time: within 7 days. Supply capacity: factory direct. Models: BJPX‑M80N, BJPX‑M100N, BJPX‑M150N, BJPX‑M200N, BJPX‑M250N, BJPX‑M300N, BJPX‑M400N.

Features

• LCD control display for setpoint and status monitoring.
• Fluorine‑free refrigeration design for environmental compliance.
• Parameter memory function enables automatic resume after fault/interrupt.
• Inner chamber with circular‑arc structure for easier cleaning.
• Pull‑out adjustable shelves (2 standard).
• Internal fan for micro air circulation to improve temperature uniformity.
• Outer cabinet: cold‑rolled steel with surface coating; inner chamber: SUS304 stainless steel.

Technical Parameters
Models: BJPX‑M80N | BJPX‑M100N | BJPX‑M150N | BJPX‑M200N | BJPX‑M250N | BJPX‑M300N | BJPX‑M400N
Capacity: 80 L | 100 L | 150 L | 200 L | 250 L | 300 L | 400 L
Temperature sensor: PT100 (all models)
Temperature range: 0–65°C (all models)
Temperature fluctuation: ±1°C (all models)
Temperature uniformity: ±2°C (all models)
Temperature precision: 0.1°C (all models)
Timing range (min/h): 0–9999 (all models)
Humidity range: 50–90% RH (all models)
Humidity control accuracy: 1% RH (all models)
Humidity fluctuation: ±5–±8% RH (all models)
Refrigerant: R134a (most models); R404a (largest model)
Sterilization: UV sterilization lamp with timer (all models)
Power supply: AC 220V 50Hz standard; 110V 60Hz optional
Power consumption: M80N/M100N/M150N: 1200 W; M200N/M250N: 1300 W; M300N/M400N: 1500 W
Shelves: 2 standard (adjustable)
Standard accessories: UV lamp, shelf, RS485, BOD socket
Optional accessories: printer, additional shelves, small submersible pump, USB interface

Dimensions & Weights
Internal size (W*D*H) by model: 400*370*560 mm | 400*370*680 mm | 450*420*850 mm | 450*450*1000 mm | 480*490*1070 mm | 520*500*1170 mm | 580*540*1270 mm
External size (W*D*H) by model: 540*580*1110 mm | 540*580*1230 mm | 590*630*1390 mm | 590*660*1540 mm | 620*700*1610 mm | 660*700*1710 mm | 720*760*1810 mm
Package size (W*D*H) by model: 680*730*1290 mm | 680*730*1410 mm | 730*770*1570 mm | 730*800*1720 mm | 760*850*1790 mm | 800*850*1890 mm | 860*900*1990 mm
Net weight by model: 70 kg | 75 kg | 95 kg | 100 kg | 110 kg | 120 kg | 140 kg
Gross weight by model: 95 kg | 100 kg | 125 kg | 132.5 kg | 140 kg | 155 kg | 175 kg

Note
Not suitable for long‑term refrigeration or storage.
