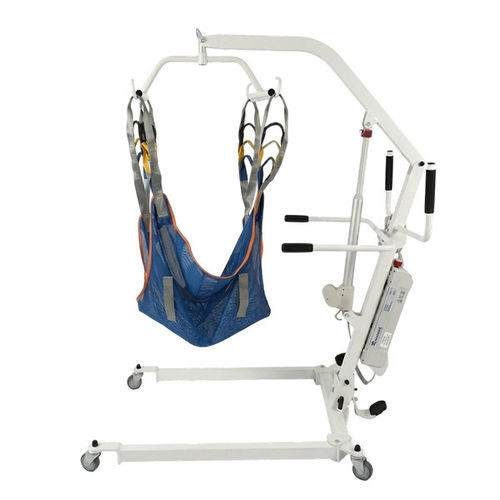

Electric patient lift A003

on castersfor disabled peoplewheelchair

Product Overview
The A003 is a patient transfer and rehabilitation device combining a powered electric lift with an assisted walking function. With a 180 kg rated load and a reinforced steel frame, it supports transfers and standing/stepping training for disabled, semi-dependent or post-operative patients in home care or institutional settings.

Core Selling Points

• Dual-mode mobility: functions as a mobile patient lift and as a walking-assist frame using interchangeable hammocks for standing and stepping training.
• 180 kg rated load: reinforced steel main frame designed for heavy-duty and frequent use.
• Tiered walking handrail: ergonomically positioned support handrail to help patients stabilize weight and practice steps.
• All-electric drive: high-torque linear actuator provides smooth, quiet and vibration-free lifting.
• Adjustable base width: pedal or lever adjustment to retract for passage or extend to accommodate large wheelchairs or beds.
• Dual safety mechanisms: emergency stop button and manual emergency descent for safe operation.

Details

• Designed for rehabilitation: enables caregivers to lift patients to standing so limited range-of-motion and balance training can be performed to reduce muscle atrophy and DVT risk.
• Precise electric control: handheld remote and built-in motor allow single-caregiver transfers with minimal physical effort, including floor-to-bed, toileting and bathing transfers.
• Stable 4-point lifting structure: 360° rotating crossbeam for position adjustment; compatible hooks for step-through, fully enclosed and toileting slings.
• Professional finishing: medical silent casters with independent rear brakes and anti-collision soft pads to protect home environments and furniture.

Classification
Transfer & Mobility

Technical Parameter Table
Parameter Items — Specifications Details
Product Model — A003 Series (Rehabilitation and Walking Aid)
Features — Electric lift + assisted walking training
Rated load — 180kg
Drive system — 24V High-Power Linear Actuator Motor
Armrest configuration — Walking aid handrails designed for human-machine collaboration
Safety devices — Emergency stop button, manual emergency descent, overload protection
Caster system — Medical silent wheels with independent rear brakes on the rear wheels
Frame material — Reinforced steel

caractéristiques / spécifications techniques

• Model: A003 Series (Rehabilitation and Walking Aid)
• Rated load: 180kg
• Drive system: 24V High-Power Linear Actuator Motor
• Features: Electric lift and assisted walking training
• Safety: Emergency stop, manual emergency descent, overload protection
• Frame: Reinforced steel
• Casters: Medical silent wheels with independent rear brakes
